ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader

1
MOQ
25000~38000
Price
ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: TOP ANGLE GRINDING
MAX DIA.: 120-505MM
THICKNESS: 0.5-10MM
TOP ANGLE: 8°~17°
BEVEL ANGLE: -45°~45°
CIRCUMFERENTIAL RANGE: 0°~5°
TIPS LENGTH RANGE: 1~15MM
PITCH: 2~65MM
Grinding Wheel Speed: 3.5~20S/TIP
WHEEL GRINDING SPEED: 3500`5800RPM
WHEEL SIZE: 125*32*25MM
PRECISION: < 0.02MM
POWER: 5.5KW
DIMENSION: 2750*1300*1865MM (L*W*H)
WEIGHT: 2100KG
FEATURES: 7*24 HOURS WORKING
LOADER PLACING SAWS QTY: 100PCS
LOADING & PICKING SAWS TIME: 12~24S
BORE: 12~32MM,12~50MM,12~80MM
FEATURES-2: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL
FEATURES-3: SAVE LABOR COST
FEATURES-4: INCREASE EFFICIENCY & PRODUCTIVITY
Highlight:

CNC Function Circular Saw Blade Grinder

,

TCT Circular Saw Blade Grinder

,

TORSEL Circular Saw Blade Grinder
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: ATZ400/ATZ500
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description



Product Description

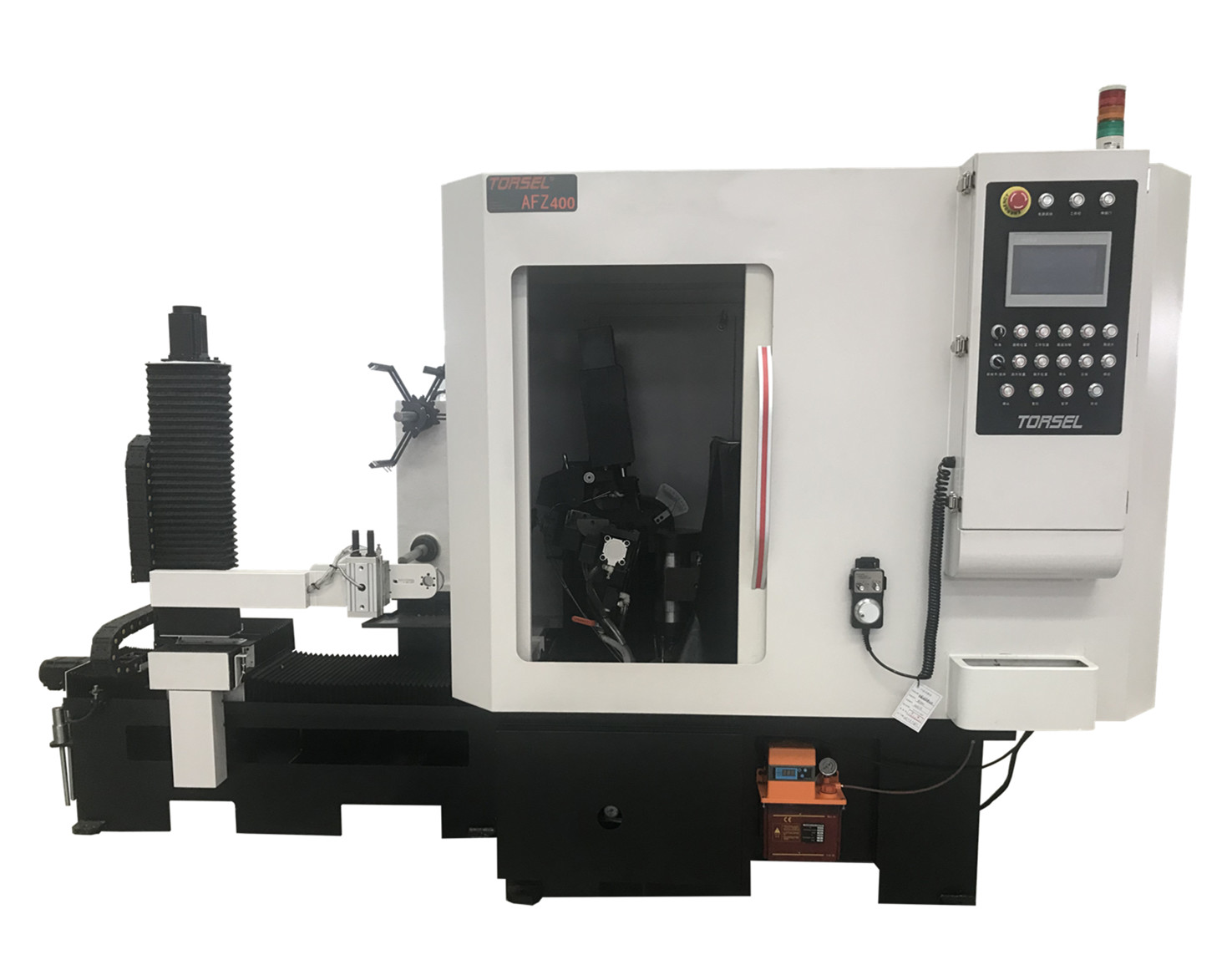

ATZ400/ATZ500 CNC TOP ANGLE Grinding Machine With Loader for TCT TIPS TOP angle sharpening with Robot (PRECISION)
High-level productivity & precision grinding machine for carbide tools.

• Saw blade Diameter: < 505mm
• Function: top angle sharpening
• Precision: <0.02mm
• Model: ATZ 400 / ATZ 500
• Pitch:<65mm
• Cooperation Company
ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 0

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 1

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 2
ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 3



Advantages of sawblade grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.

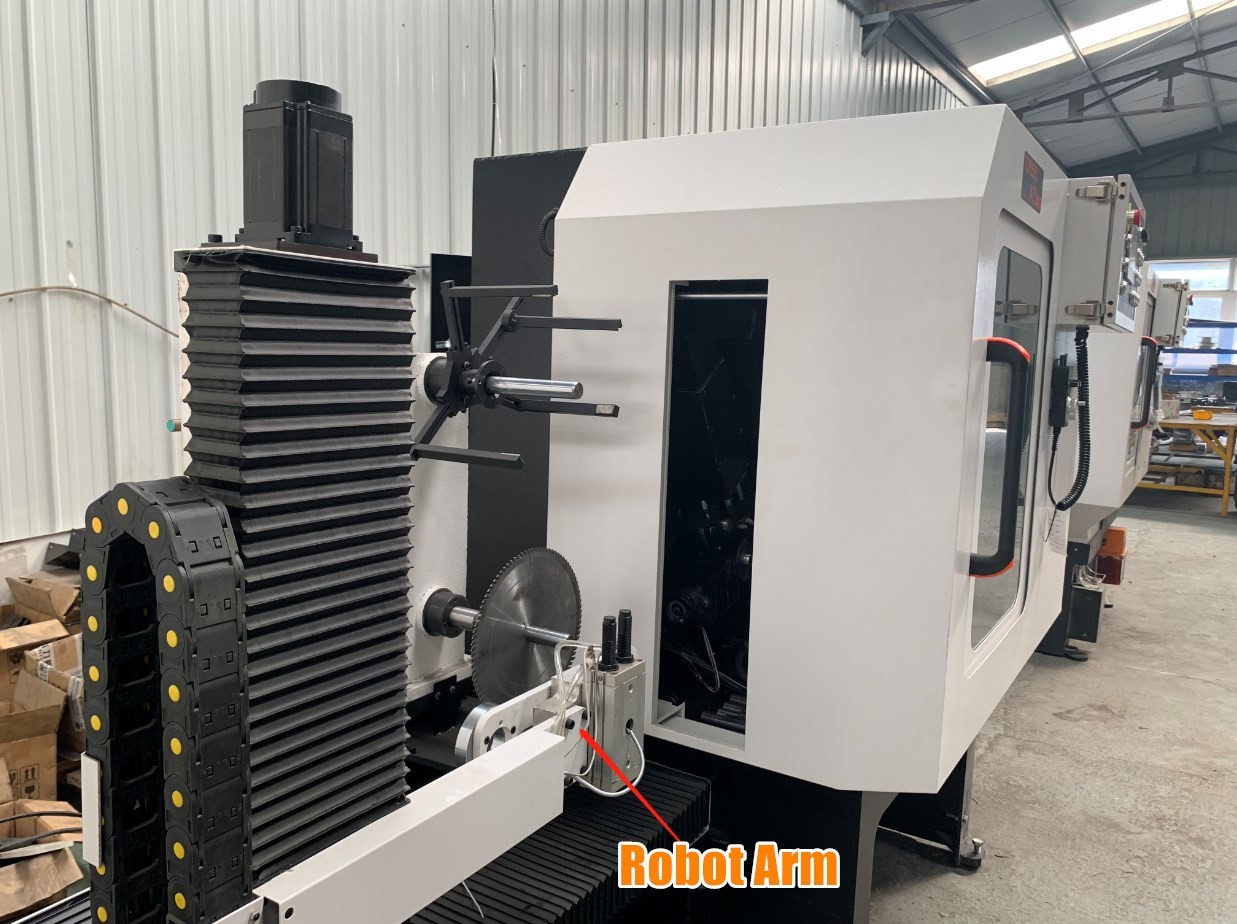

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding dual side angle are finished in one cycle set automatically;
• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;

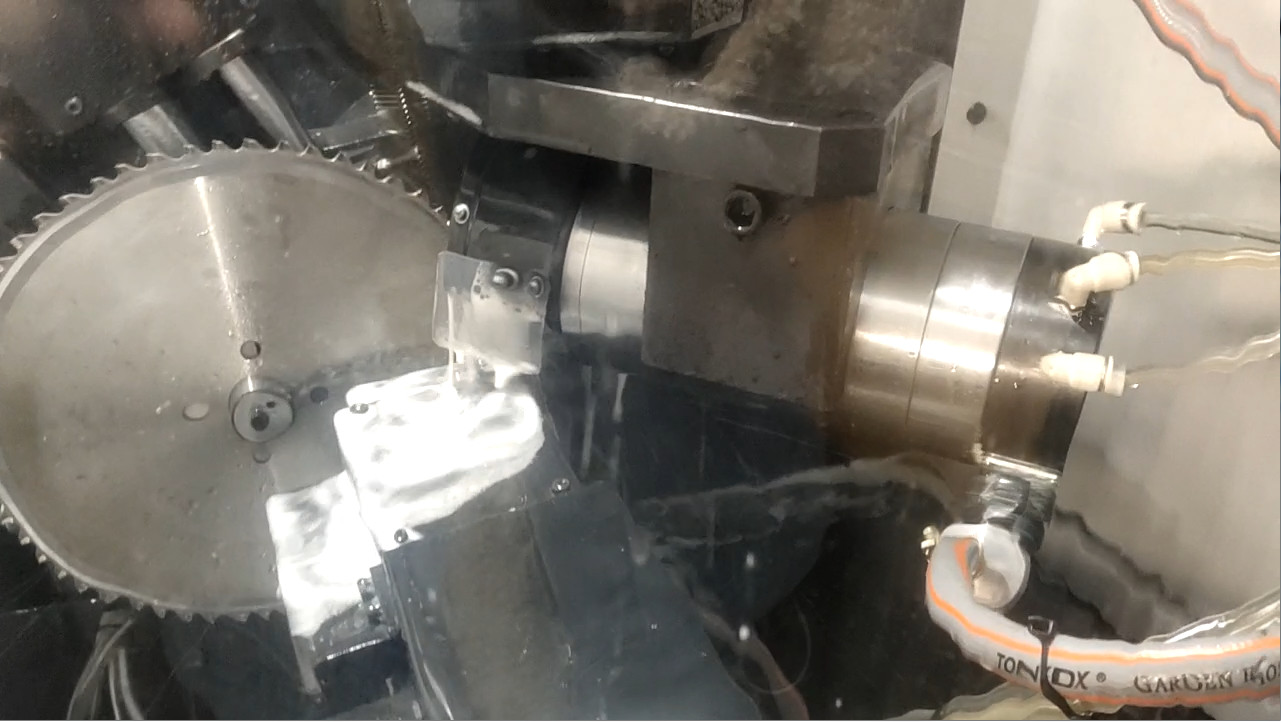

• More Function- grinding TOP ANGLE  of sawblade

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 4




CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 5





Features

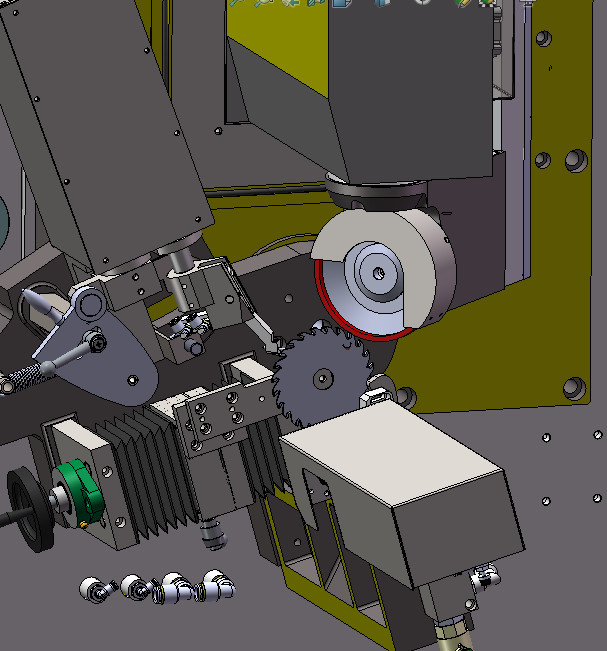

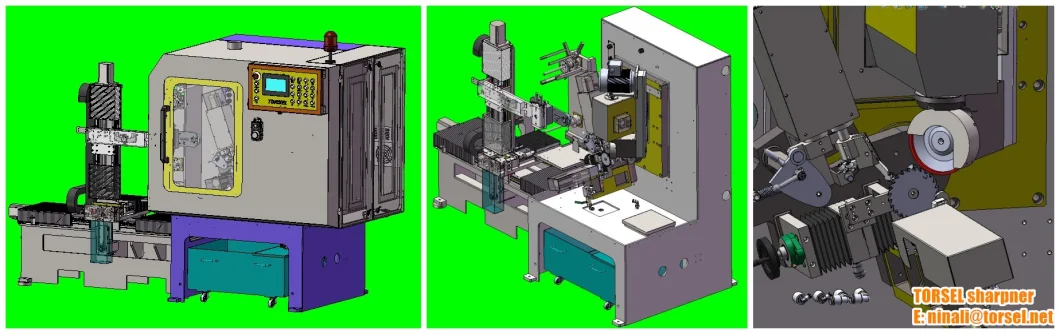

3-D Graphics Grinding Machine

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 6



Technical Premeter



Model ATZ500 ATZ400
Saw Diameter 120~505mm 120~405mm
Plate Thickness 0.5~10mm 0.5~10mm
Top Angle 8°~17° 8°~17°
Bevel Angle -45°~45° -45°~45°
Bore Diameter 12~80mm 12~80mm
Pitch 2~65mm 2~65mm
Tip Length 1~15mm 1~15mm
Wheel Power 0.75KW 0.75KW
Wheel Diameter 125*32*25mm 125*32*25mm
Wheel Bore 32mm 32mm
Wheel Linear Velocity 30m/s 30m/s
Grinding Speed 2mm~10mm/s 2mm~10mm/s
Processing Efficiency 3.5~20 tip/min 3.5~20 tip/min
Grinding Accuracy <0.02mm <0.02mm
Loader Changing Saws Qty 100 100
Loader Changing Saws Times 12s 24s
Coolant Tank 70 L 70 L
Input Voltage 380V 50Hz(OR 220V60Hz) 380V 50Hz(OR 220V60Hz)
Power Approx 5.5KW Approx 5.5KW
Dimension 2750mm*1300mm*1865mm 2600mm*1300mm*1865mm
Weight 2300kg 2200kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 7
ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 8
ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 9




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

ATZ400 / ATZ500 CNC Function TCT Top Circular Saw Blade Grinder With Loader 10
