Home /Products/Circular Saw Blade Grinding Machine/Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades

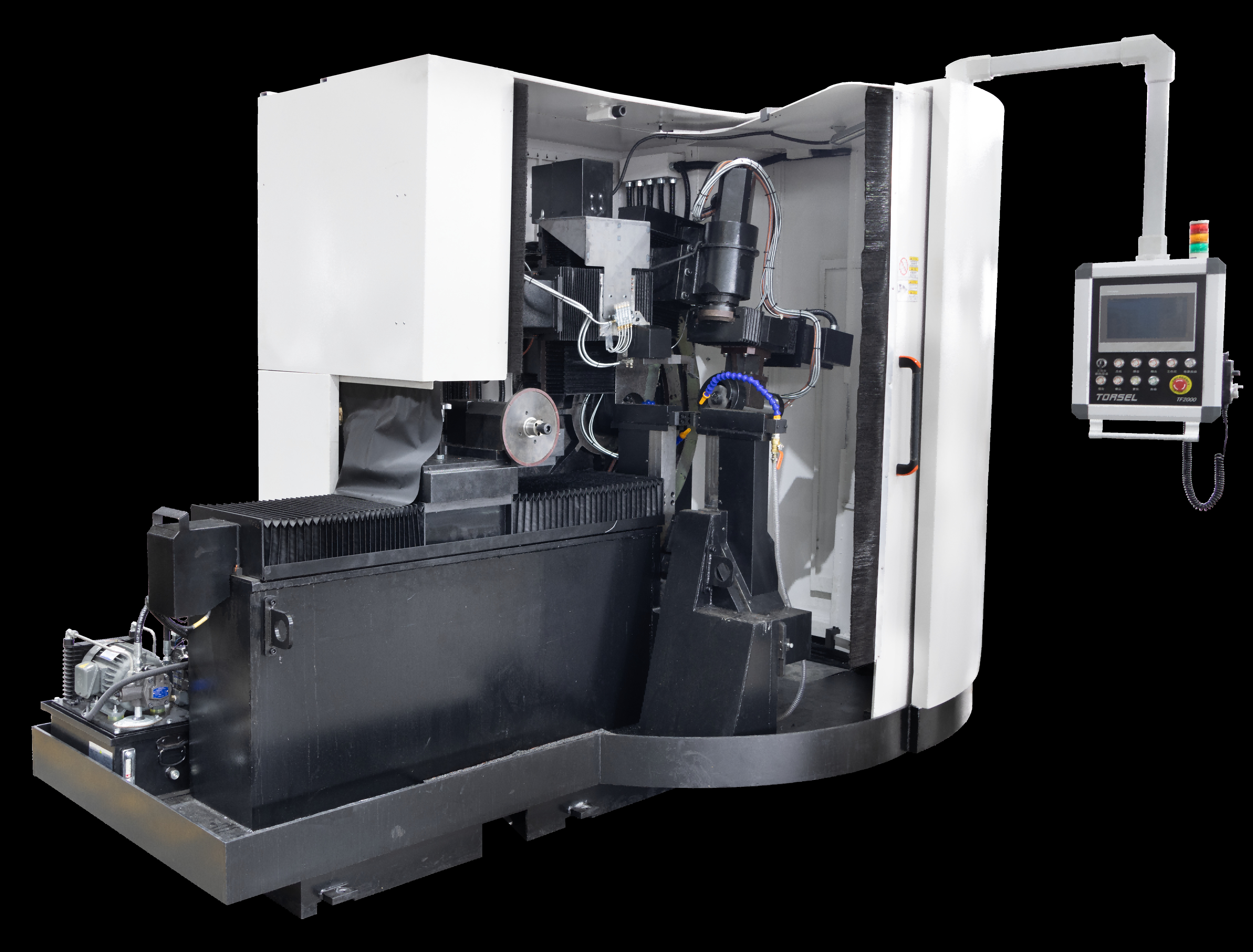

Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades

1
MOQ
53000~69000
Price
Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: METAL COLD SAW BLADE
MAX DIA.: 500~2500MM
THICKNESS: 1~15MM
HOOK ANGLE: -30°~30°
BEVEL ANGLE: -20°~20°
TOP AGNLE: 8°~25°
TIPS LENGTH RANGE: 1~20MM
PITCH: 5~200MM
Grinding Wheel Speed: 6~20S/TIP
WHEEL SIZE: 125*32MM
PRECISION: < 0.02MM
POWER: 10KW
DIMENSION: 3900*1950*2300MM (L*W*H)
WEIGHT: 7000KG
Highlight:

Precision Circular Saw Blades Grinding Machine

,

Automatic Circular Saw Blades Grinding Machine

,

Circular automatic saw blade grinding machine
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: TF2500
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

NS2500 CNC Metal Cold Saw Blades Dual Side Grinder





Product Description

NS2500 Metal Cold Saw Blade Dual Side Grinding Machine
This model is designed for Metal Cold Cutting saw blades ( steel tube,steel bar cutting saw blades) manufacturing & resharpening.



Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 0


Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 1


Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 2


High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <2500mm
• Function: TOP/FACE/CHAMFER/GROOVE/CHIP BREAK SLOT asharpening
• Precision: <0.02mm
• Model: TF 2500
• High precision, more function & more productivity, PURCHASE is cost-effective.

Cooperation Companys

Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 3


Advantages of the Saw Blade Grinding Machine

Higher Precision – Achieves grinding accuracy of <0.02 mm, providing exceptional precision.

Enhanced Efficiency – Experience productivity at an elevated level.

Improved User Comfort – Makes operation simpler and more comfortable.

Greater Flexibility – Delivers precision to meet various requirements.

Expanded Functionality – Capable of grinding the top, face, and angle of the saw blade.


Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 4



Technical Premeter
Saw Diameter 500~2500mm
Plate Thickness 1~15mm
Side Relief -5°~ 5°
Side Angle -5°~ 5°
Hook Angle -5°~28°
Bore Diameter 30~200mm
Pitch 5~500mm
Teeth Length 2~20mm
Wheel Size 125mm*32mm
Wheel Speed 3000~6000RPM
Grinding Speed 6~20s /tip
Power 10KW
Dimension 3900*1950*2300mm
Weight 7000kg


Configuration
Ball Screw IF(Germany)
Crossed Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



Please contact with me for more information:


Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 5
Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 6
Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 7




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
Precision Automatic Grinding Machine For Metal Cold Circular Saw Blades 8
