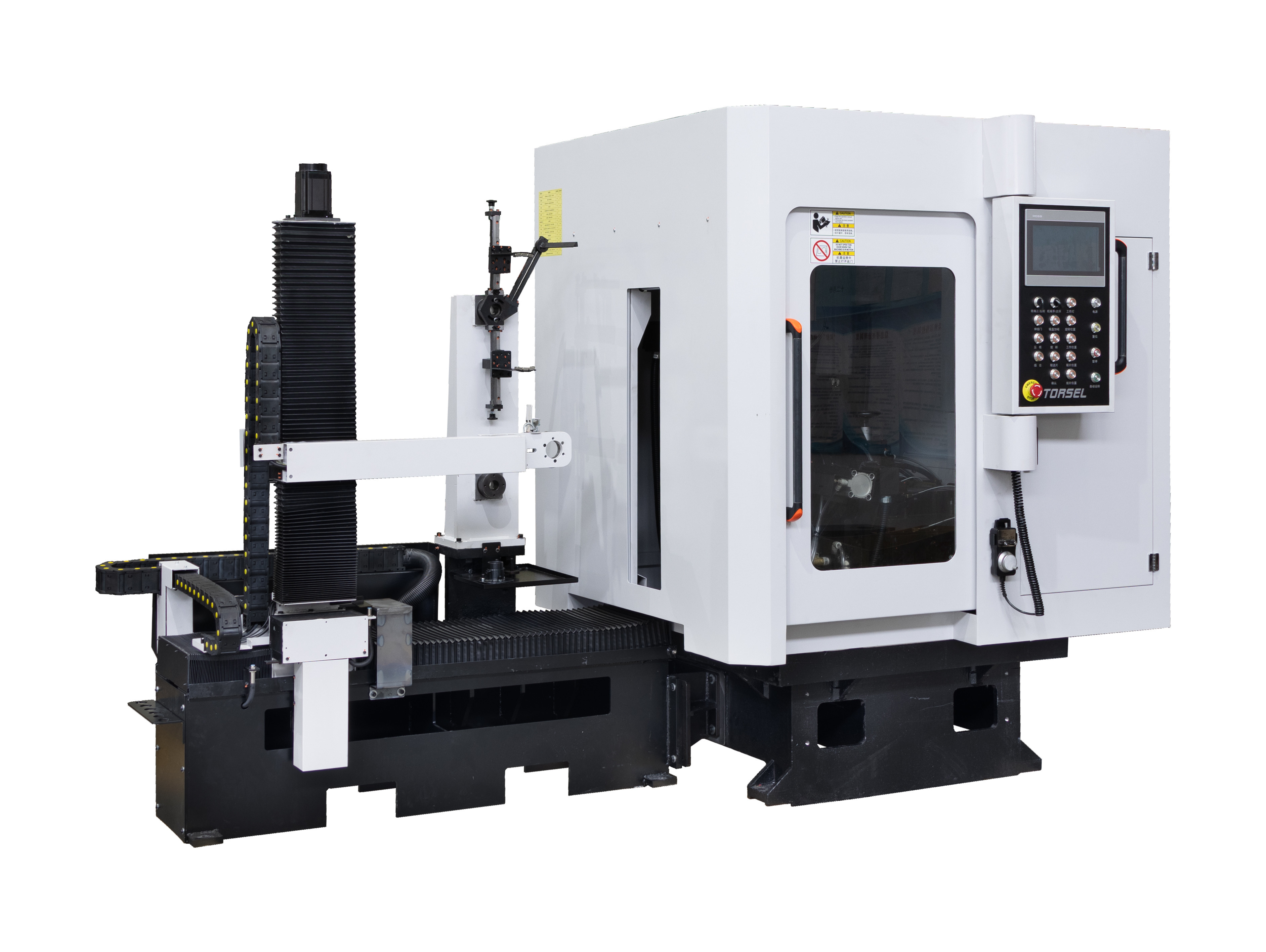

ASZ400/ASZ510 CNC Woodworking Circular Saw Blade Grinder with Loader for TCT Wood & Aluminum Saw Blade Sharpening in Dual-Side Angle with Robot (PRECISION)
High-efficiency and precision grinding machine for carbide tools.
This model is designed to help saw blade manufacturers improve productivity, enhance operational efficiency, and reduce labor costs. The machine operates continuously, 24/7, ensuring it runs during nighttime without the need for supervision.
• Saw blade Diameter: < 510mm
• Function: dual Side sharpening
• Precision: <0.02mm
• Model: ASZ 510
• Pitch:<100mm
• Cooperation Company
Benefits of the Woodworking Saw Blade Grinding Machine:
Enhanced Precision: Grinding accuracy of <0.015mm, delivering exceptional precision.
Labor Cost Savings: Automated loader for picking and placing saw blades, reducing labor costs.
Continuous Operation: The loader picks and places woodworking circular saw blades, and dual-side angle grinding is completed in one automated cycle, operating 24/7.
Increased Efficiency and Productivity: Features advanced automation for improved operational efficiency.
Versatile Precision: Provides flexibility to meet any precision requirements.
Multi-Functionality: Capable of grinding the dual side of saw blades.
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter
| Model |
ASZ510 |
ASZ400 |
| Saw Diameter |
120~510mm |
120~405mm |
| Plate Thickness |
0.5~10mm |
0.5~10mm |
| Centripetal |
-5°~5° |
-5°~5° |
| Circumferential |
0°~5° |
0°~5° |
| Bore Diameter |
12~120mm |
12~120mm |
| Pitch |
2~100mm |
2~100mm |
| Tip Length |
2`15mm |
2`15mm |
| Wheel Power |
0.75KW |
0.75KW |
| Wheel Diameter |
80~120mm |
80~120mm |
| Wheel Bore |
32mm |
32mm |
| Wheel Linear Velocity |
30m/s |
30m/s |
| Grinding Speed |
2mm~10mm/s |
2mm~10mm/s |
| Processing Efficiency |
4~20 tip/min |
4~20 tip/min |
| Grinding Accuracy |
<0.01mm |
<0.01mm |
| Coolant Tank |
70 L |
70 L |
| Input Voltage |
380V 50Hz(OR 220V60Hz) |
380V 50Hz(OR 220V60Hz) |
| Power |
Approx 6KW |
Approx 6KW |
| Dimension |
2850mm*1520mm*1920mm |
2650mm*1520mm*1920mm |
| Weight |
2500kg |
2500kg |
Configuration
| Ball Screw |
IF(Germany) |
| Roller Guide |
HIWIN(Taiwan) |
| Pneumatic Parts |
SMC(Japan) |
| Servo Motor |
Inovance |
| PLC |
Inovance ARM600 |
| Harmonic Drive |
Inovance |
FAQ
1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.
2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.
