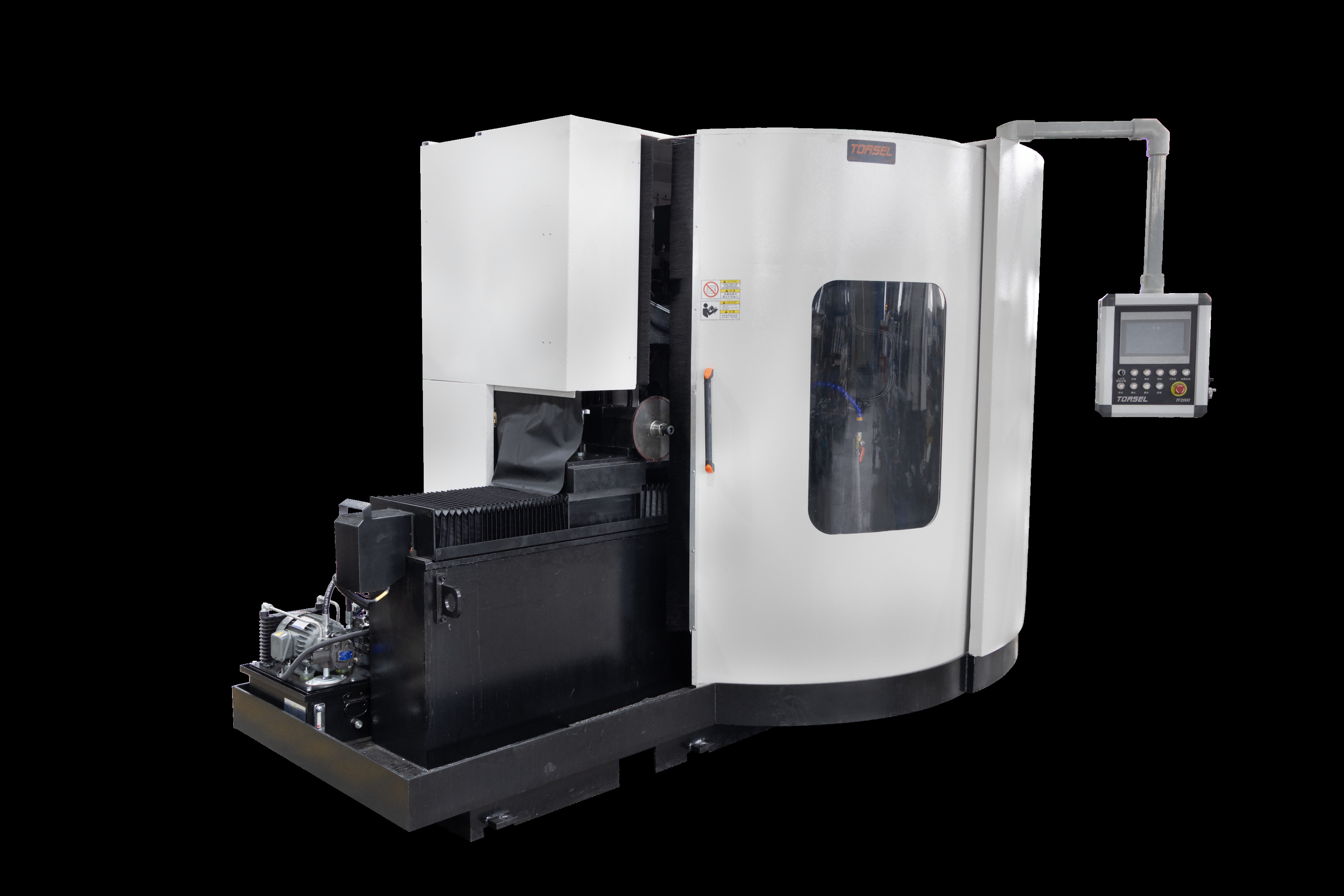

NS2500 Dual-Side Grinder for Metal Cold Saw Blades
This machine is specially developed for the production and resharpening of metal cold cutting saw blades, including those used for cutting steel tubes and steel bars.
High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <2500mm
• Function: TOP/FACE/CHAMFER/GROOVE/CHIP BREAK SLOT asharpening
• Precision: <0.02mm
• Model: TF 2500
• High precision, more function & more productivity, PURCHASE is cost-effective.
Cooperation Companys
Advantages of the Saw Blade Grinding Machine
Higher Precision – Achieves grinding accuracy of <0.02 mm, providing exceptional precision.
Enhanced Efficiency – Experience productivity at an elevated level.
Improved User Comfort – Makes operation simpler and more comfortable.
Greater Flexibility – Delivers precision to meet various requirements.
Expanded Functionality – Capable of grinding the top, face, and angle of the saw blade.
Technical Premeter
| Saw Diameter |
500~2500mm |
| Plate Thickness |
1~15mm |
| Side Relief |
-5°~ 5° |
| Side Angle |
-5°~ 5° |
| Hook Angle |
-5°~28° |
| Bore Diameter |
30~200mm |
| Pitch |
5~500mm |
| Teeth Length |
2~20mm |
| Wheel Size |
125mm*32mm |
| Wheel Speed |
3000~6000RPM |
| Grinding Speed |
6~20s /tip |
| Power |
10KW |
| Dimension |
3900*1950*2300mm |
| Weight |
7000kg |
Configuration
| Ball Screw |
IF(Germany) |
| Crossed Roller Guide |
HIWIN(Taiwan) |
| Pneumatic Parts |
SMC(Japan) |
| Servo Motor |
Inovance |
| PLC |
Inovance ARM600 |
| Harmonic Drive |
Inovance |
Please contact with me for more information:
FAQ
How to select the right saw blade grinding machine?
A high-quality grinder should offer superior precision and ensure extended tool longevity.
What’s the grinding accuracy and durability of TORSEL’s machine?
TORSEL’s circular saw blade grinder delivers outstanding accuracy of <0.01mm, with a working lifespan ranging from 7 to 15 years.
