Home /Products/Circular Saw Blade Grinding Machine/High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine

High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine

1
MOQ
19000~28000
Price
High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: FACE ANGLE GRINDING
MAX DIA.: 120-800MM
THICKNESS: 0.5-10MM
HOOK ANGLE: 0°~25°
TOP ANGLE: 8°~25°
CIRCUMFERENTIAL RANGE: 0°~5°
TIPS LENGTH RANGE: 1~15MM
PITCH: 2~65MM
Grinding Wheel Speed: 3.5~20S/TIP
WHEEL GRINDING SPEED: 3500`5800RPM
WHEEL SIZE: 125*32*25MM
PRECISION: < 0.02MM
POWER: 4KW
DIMENSION: 1630*1100*1950MM (L*W*H)
WEIGHT: 1500KG
BEVEL ANGLE: -45°~45°
Highlight:

Woodworking circular saw blade grinding machine

,

circular saw blade grinding machine

,

TORSEL circular blade grinding machine
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: TFM800
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

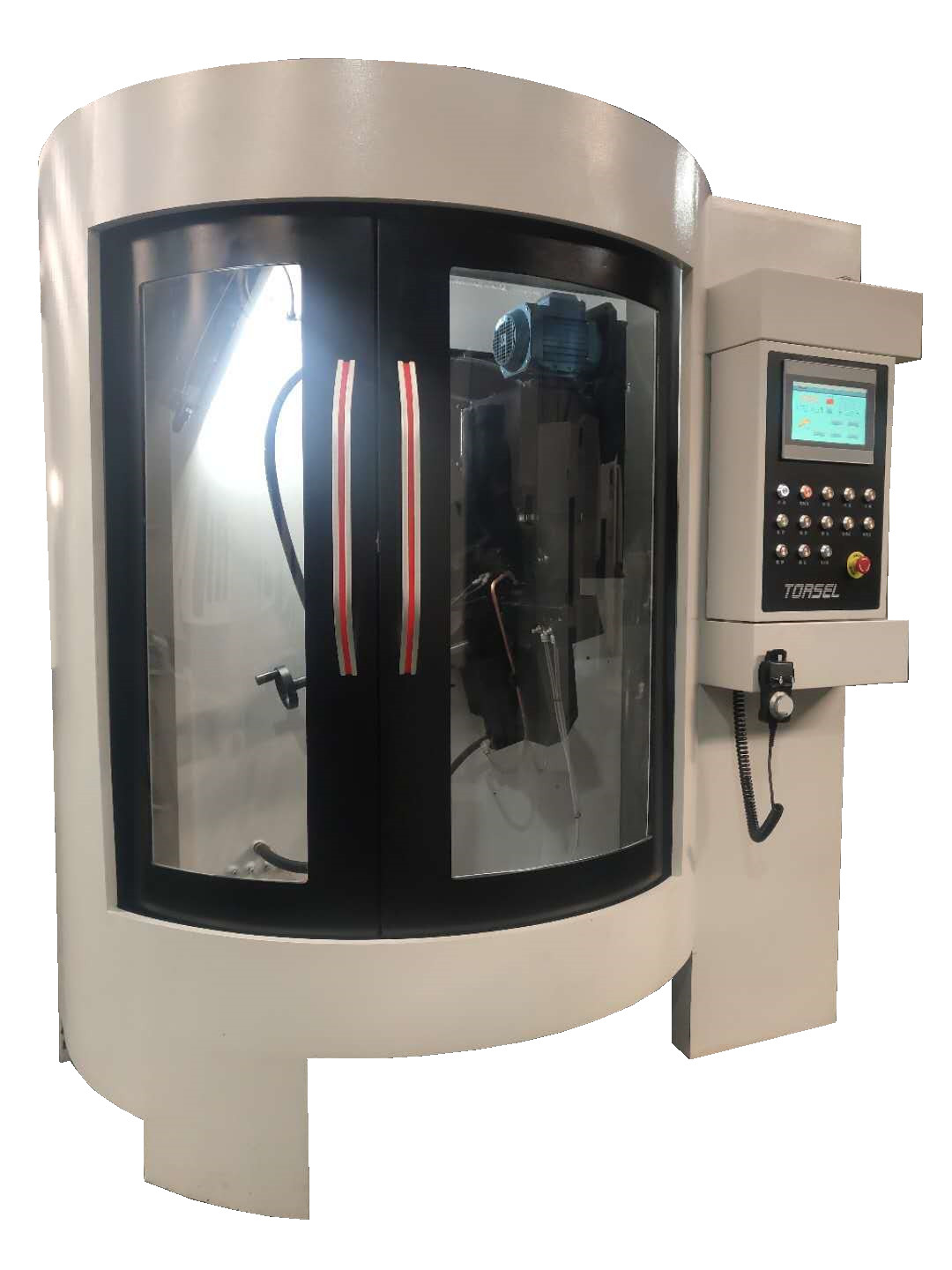

TFM800 CNC Woodworking & Aluninum Saw Blade Sharpening Machine











Product Description



Experience the power of precision with the TFM 800CNC Top/Face Sharpening Machine. This grinding machine is designed for resharpening service centers and specializes in the resharpening of T.C.T. saw blades. It's an essential tool for those working with woodworking and aluminum cutting saws, focusing on the top, face, and bevel angles of the blades. The TFM 800CNC offers an economical solution for resharpening service centers, providing an optimal balance between cost and performance."




High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 0



Advantages of saw blade sharpener
• More precision- grinding precision: <0.025mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding TOP & FACE of saw blade



CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 1 High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 2




3-D Graphics Grinding Machine

High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 3






Technical Premeter
Saw Blade Diameter 110~800mm
Hook Angle 0°~ -25°
Top Angle 8°~25°
Chamfer Angle of Top 45°~-45°
Chamfer Angle of Face 30°~-30°
Pitch 2-105mm
Wheel Diameter 125mm*32mm
Wheel Speed 4000~5000r/min
Grinding Speed 1~20mm/s
Power 4KW
Dimensions 1630 *1100 *1950mm
Weight 1500kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance


High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 4
High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 5


High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 6






FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

High Accuracy Woodworking Aluminum Circular Saw Blade Grinding Machine 7
