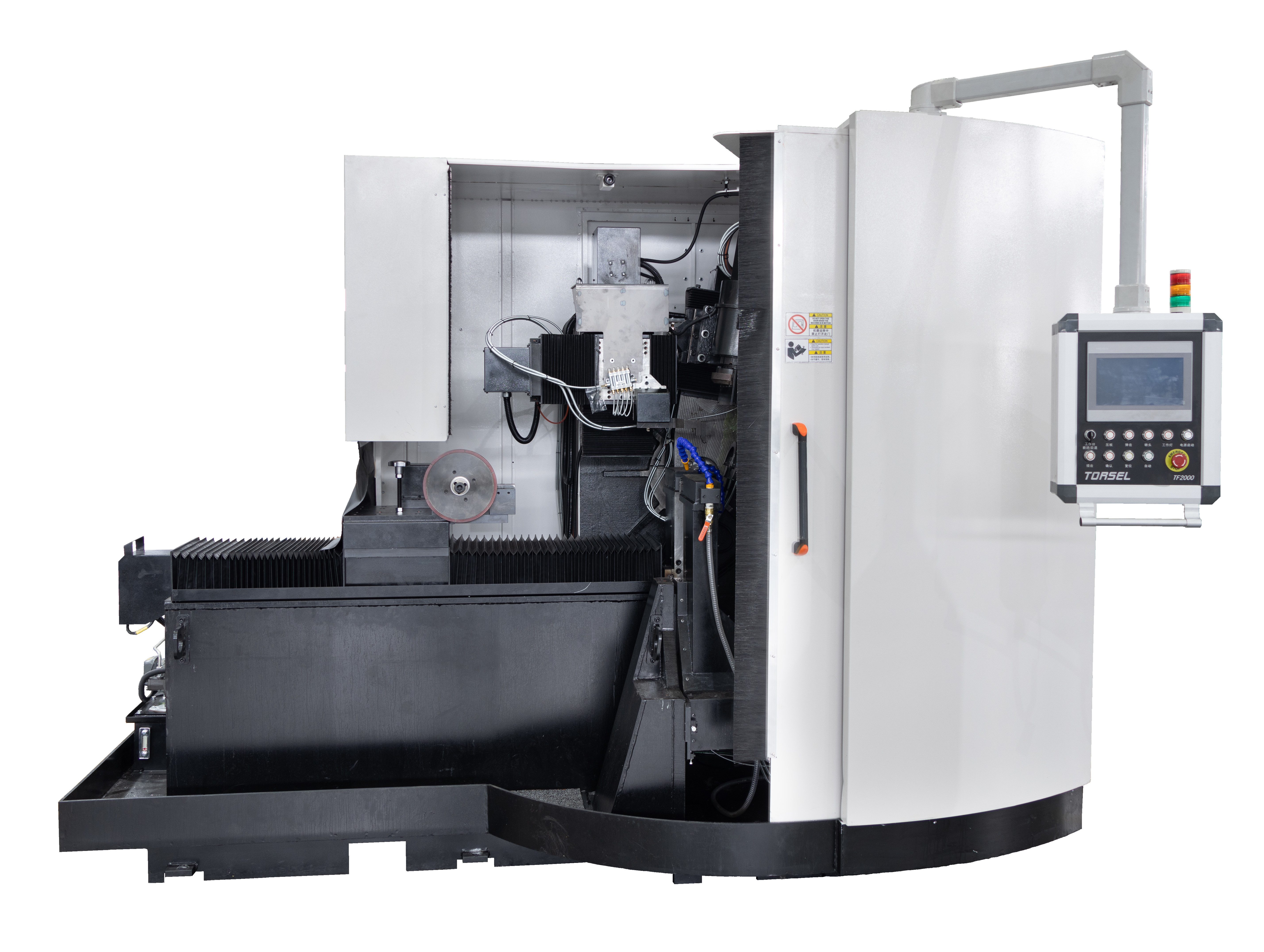

NS2000 Dual-Side Grinding Machine for Metal Cold Saw Blades
The NS2000 is a high-precision CNC grinding machine designed for the manufacturing and re-sharpening of metal cold-cutting saw blades, including those used for cutting steel tubes and bars. This machine is capable of processing saw blades with diameters ranging from 600 to 2000 mm, offering versatility and efficiency for various industrial applications.
High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <2500mm• Function: TOP/FACE/CHAMFER/GROOVE/CHIP BREAK SLOT asharpening
• Precision: <0.02mm• Model: TF 2500• High precision, more function & more productivity, PURCHASE is cost-effective.
Cooperation Companys
Benefits of the Saw Blade Grinding Machine
Superior Precision: Provides a grinding accuracy of <0.02 mm, ensuring exceptional precision.
Increased Productivity: Offers enhanced efficiency for higher levels of output.
Enhanced User Experience: Designed to simplify operations, making them more comfortable for the user.
Greater Versatility: Capable of delivering precise results to meet diverse needs.
Expanded Capabilities: Enables grinding of the top, face, and angle of the saw blade.
Technical Premeter
| Saw Diameter |
500~2000mm |
| Plate Thickness |
1~15mm |
| Side Relief |
-5°~ 5° |
| Side Angle |
-5°~ 5° |
| Hook Angle |
-5°~28° |
| Bore Diameter |
30~200mm |
| Pitch |
5~500mm |
| Teeth Length |
2~20mm |
| Wheel Size |
125mm*32mm |
| Wheel Speed |
3000~6000RPM |
| Grinding Speed |
6~20s /tip |
| Power |
10KW |
| Dimension |
3530*2200*2680mm |
| Weight |
5700kg |
Configuration
| Ball Screw |
IF(Germany) |
| Crossed Roller Guide |
HIWIN(Taiwan) |
| Pneumatic Parts |
SMC(Japan) |
| Servo Motor |
Inovance |
| PLC |
Inovance ARM600 |
| Harmonic Drive |
Inovance |
Please contact with me for more information:
FAQ
How to select the optimal saw blade grinding machine?
The best grinding machine offers high precision and ensures a long-lasting service life for the tools.
What is the performance of the TORSEL saw blade grinding machine?
The TORSEL saw blade grinding machine provides exceptional precision of <0.01mm, with a service life ranging from 7 to 15 years.
