◆Utilizes grinding wheel end-face technology, offering dual speeds (linear speeds of 40 m/s and 60 m/s) to handle both cemented carbide and Stellite with dedicated settings.
◆Equipped with a Japanese four-axis CNC system, providing simple and intuitive operation. Grinding cycles and feed rates can be directly configured through the human-machine interface.
◆Achieves a grinding accuracy of up to 0.02 mm, meeting the performance standards of imported machinery.
◆Features a fully enclosed, automated operation to maintain a clean workspace, allowing a single operator to manage multiple machines efficiently.
• Saw blade Diameter: < 210mm
• Function: SIDE sharpening
• Precision: <0.02mm
• Pitch:<50mm
• Cooperation Company

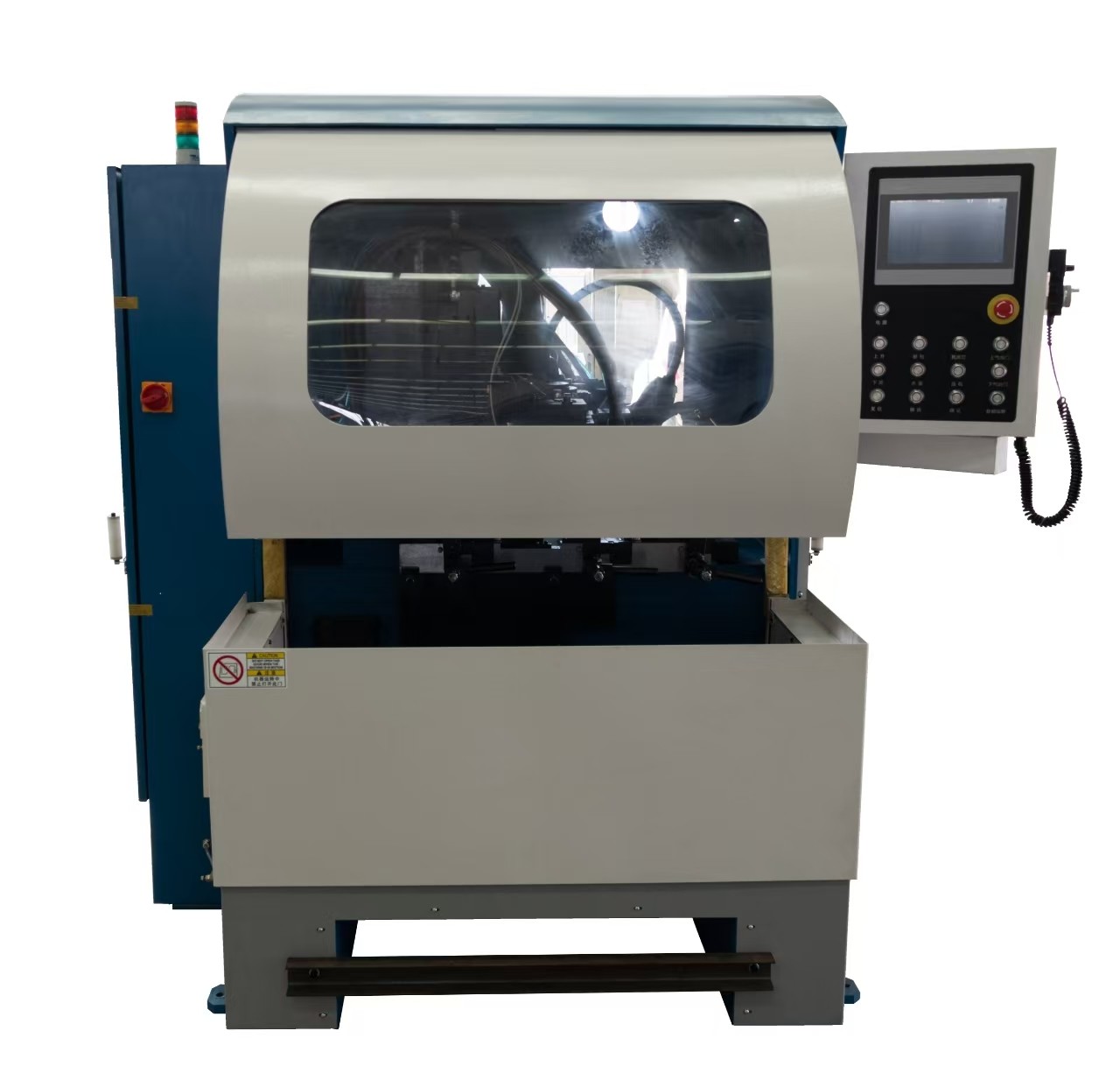

Advantages of bandsaw grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;
• More Function- grinding SIDE of bandsaw tips
Technical Premeter
| Model |
KDS210 |
| Bandsaw Diameter |
20~210mm |
| Bandsaw Thickness |
0.5~5mm |
| Hook angle |
0°~ 7° |
| Side angle |
0°~ 5° |
| Side Relief |
0°~ 5° |
| Tooth pitch |
2-50mm |
| Tip length |
2-15mm |
| Wheel diameter |
Φ100~Φ32mm |
| Wheel speed |
3500~5800RPM |
| Working efficiency |
5~20S/Tip |
| Machining accuracy |
<0.02mm |
| Power |
4kw |
| Machine dimensions |
2100L*1200W*1800H; |
| Weight |
2100kg |
Configuration
| Ball Screw |
IF(Germany) |
| Roller Guide |
HIWIN(Taiwan) |
| Pneumatic Parts |
SMC(Japan) |
| Servo Motor |
Inovance |
| PLC |
Inovance ARM600 |
| Harmonic Drive |
Inovance |
FAQ
1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.
2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.
