◆Adopt the grinding wheel end face grinding, two speeds (linear speed 40m/s and 60m/s), the switching speed can grind cemented carbide and Stellite respectively.
◆Japanese four-axis CNC system, simple and convenient operation, the grinding times and feed amount are directly set from the man-machine interface.
◆The product grinding accuracy is within 0.02mm, which fully reaches the level of imported equipment.
◆Fully enclosed automatic operation, creating a clean working environment, one person can operate multiple devices.
• Saw blade Diameter: < 210mm
• Function: SIDE sharpening
• Precision: <0.02mm
• Pitch:<50mm
• Cooperation Company

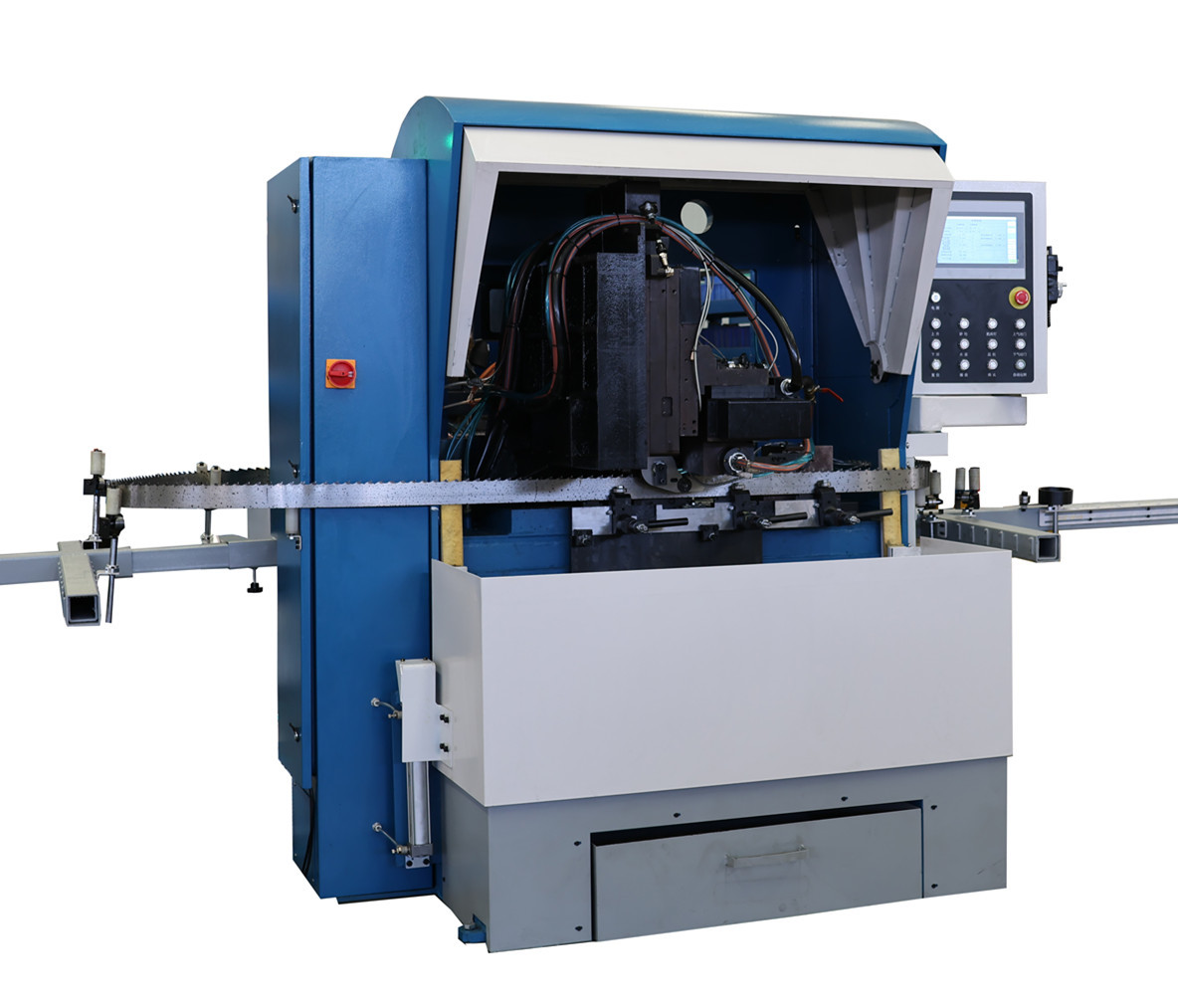

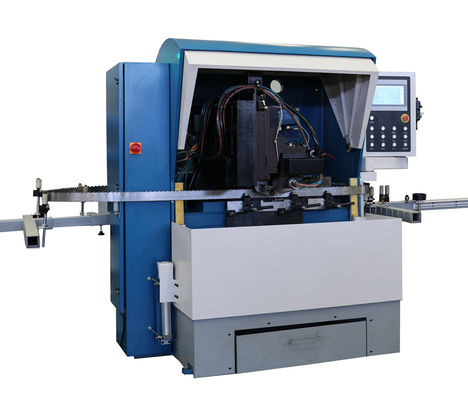

Advantages of bandsaw grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;

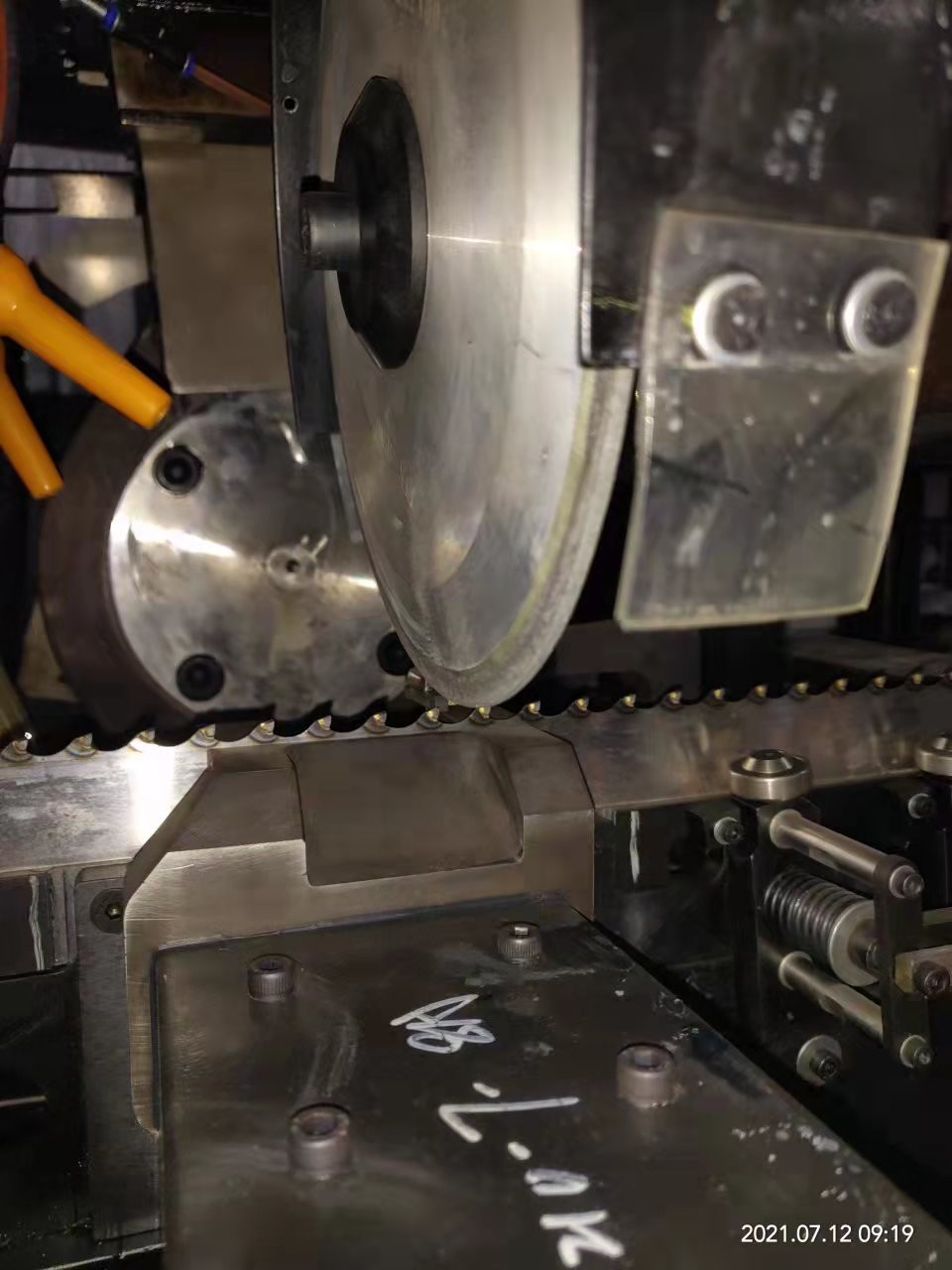

• More Function- grinding SIDE of bandsaw tips
Technical Premeter
| Model |
KDS210 |
| Bandsaw Diameter |
20~210mm |
| Bandsaw Thickness |
0.5~5mm |
| Hook angle |
0°~ 7° |
| Side angle |
0°~ 5° |
| Side Relief |
0°~ 5° |
| Tooth pitch |
2-50mm |
| Tip length |
2-15mm |
| Wheel diameter |
Φ100~Φ32mm |
| Wheel speed |
3500~5800RPM |
| Working efficiency |
5~20S/Tip |
| Machining accuracy |
<0.02mm |
| Power |
4kw |
| Machine dimensions |
2100L*1200W*1800H; |
| Weight |
2100kg |
Configuration
| Ball Screw |
IF(Germany) |
| Roller Guide |
HIWIN(Taiwan) |
| Pneumatic Parts |
SMC(Japan) |
| Servo Motor |
Inovance |
| PLC |
Inovance ARM600 |
| Harmonic Drive |
Inovance |
FAQ
1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.
2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.
