Home /Products/CNC Saw Blade Grinding Machine/CNC Function TORSEL High Accuracy Circular Saw Blade Grinder

CNC Function TORSEL High Accuracy Circular Saw Blade Grinder

1
MOQ
44000~49000
Price
CNC Function TORSEL High Accuracy Circular Saw Blade Grinder
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: METAL COLD SAW BLADE DUAL SIDE GRINDING
MAX DIA.: 600~2500MM
THICKNESS: 1~15MM
HOOK ANGLE: -5°~28°
CENTRIPETAL: -5°~5°
CIRCUMFERENTIAL RANGE: -5°~5°
TIPS LENGTH RANGE: 2~20MM
PITCH: 5~500MM
Grinding Wheel Speed: 6~20S/TIP
WHEEL GRINDING SPEED: 3000`6000RPM
WHEEL SIZE: 125*32MM
PRECISION: < 0.02MM
POWER: 10KW
DIMENSION: 3900*1950*2300MM (L*W*H)
WEIGHT: 7000KG
Highlight:

CNC Function circular saw blade grinder

,

TORSEL circular saw blade grinder

,

High Accuracy circular saw blade grinder
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: NS2500
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description



Product Description

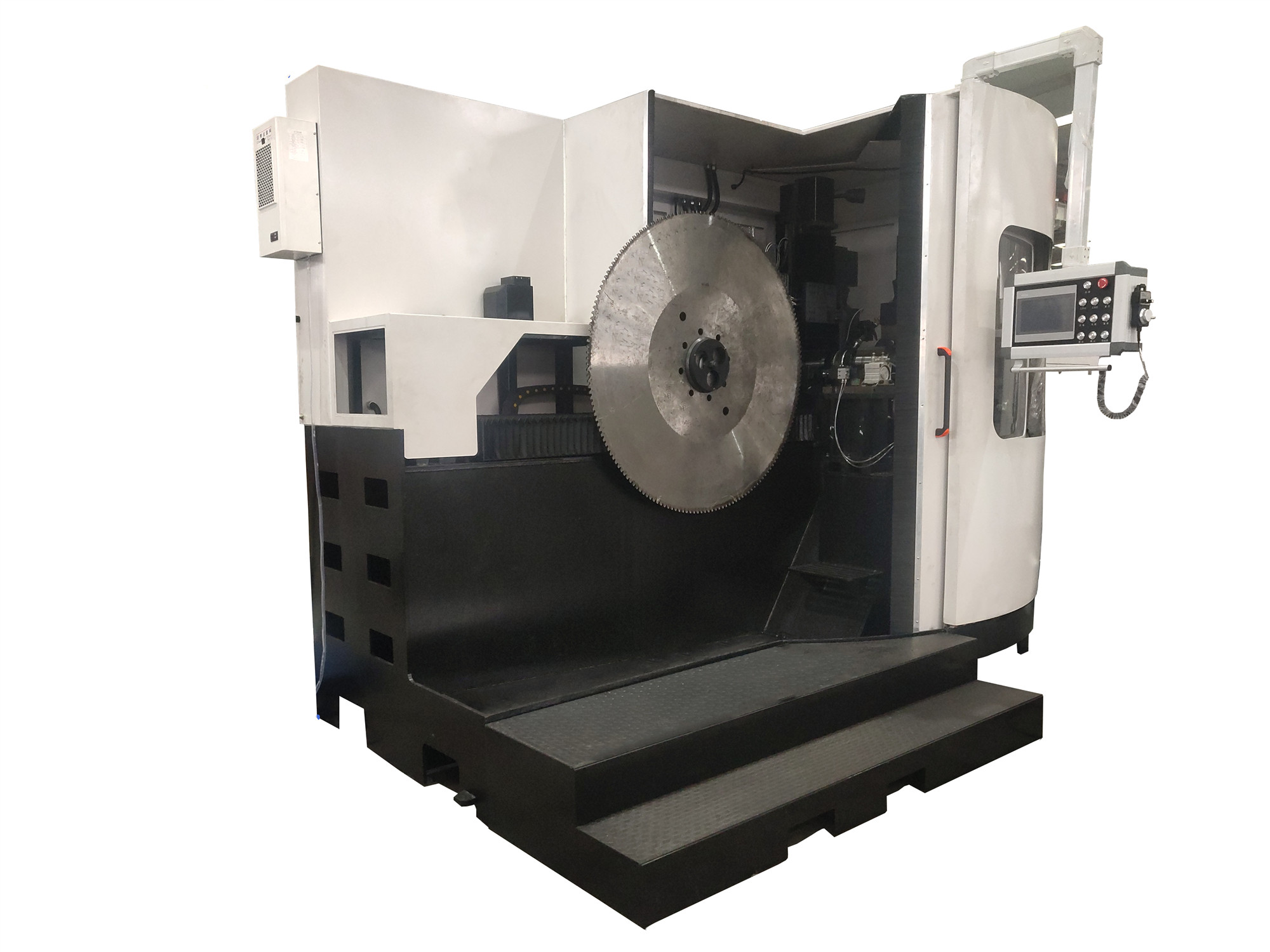

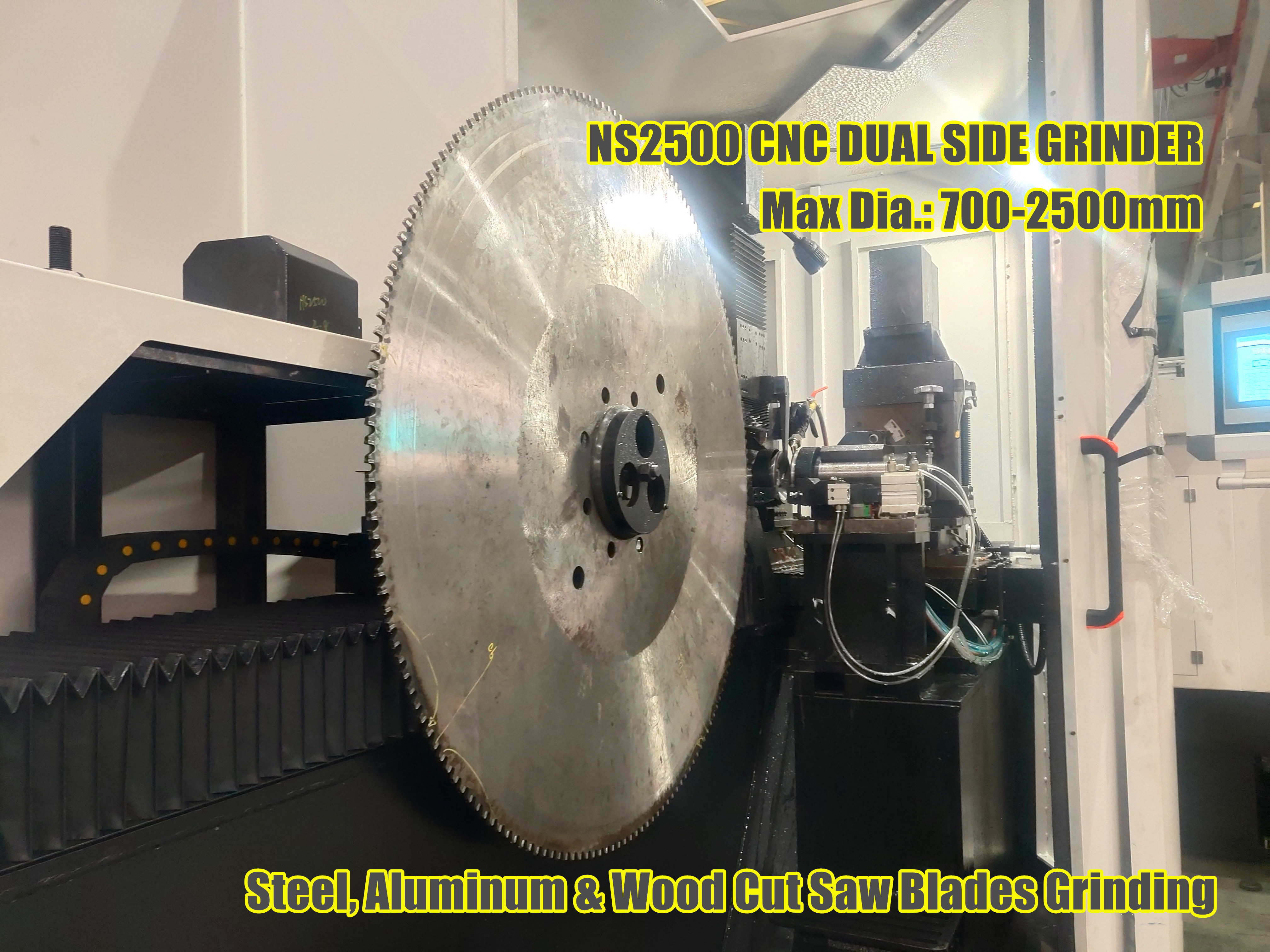

The NS2500 CNC cermet tips saw blade Grinding Machine is a high-precision CNC grinding machine that's been expertly designed for the manufacturing and grinding of metal cold cutting saw blades, such as those used for cutting steel tubes and bars. Capable of handling saw blades with diameters ranging from 600 to 2500mm, it's the go-to choice for 2500mm metal cold saws manufacturing. Plus, it offers Wi-Fi connectivity for easy integration with your MES system





CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 0


CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 1


CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 2


High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <2500mm
• Function: Dual Side asharpening
• Precision: <0.02mm
• Model: NS 2500
• High precision, more function & more productivity, PURCHASE is cost-effective.

Cooperation Companys

CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 3

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 4



Technical Premeter
Saw Diameter 600~2500mm
Plate Thickness 1~15mm
Side Relief -5°~ 5°
Side Angle -5°~ 5°
Hook Angle -5°~28°
Bore Diameter 30~200mm
Pitch 5~500mm
Teeth Length 2~20mm
Wheel Size 125mm*32mm
Wheel Speed 3000~6000RPM
Grinding Speed 6~20s /tip
Power 10KW
Dimension 3900*1950*2300mm
Weight 7000kg


Configuration
Ball Screw IF(Germany)
Crossed Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



Please contact with me for more information:


CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 5
CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 6
CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 7




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
CNC Function TORSEL High Accuracy Circular Saw Blade Grinder 8
