Home /Products/CNC Saw Blade Grinding Machine/High Accuracy High Precision CNC Saw Blade Grinding Machine

High Accuracy High Precision CNC Saw Blade Grinding Machine

1
MOQ
18000~24000
Price
High Accuracy High Precision CNC Saw Blade Grinding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: DUAL SIDE GRINDING
MAX DIA.: 120-700MM
THICKNESS: 0.5-10MM
HOOK ANGLE: -5°~30°
CENTRIPETAL: -5°~5°
CIRCUMFERENTIAL RANGE: 0°~5°
TIPS LENGTH RANGE: 3~10.5MM
PITCH: 2~65MM
Grinding Wheel Speed: 4~20S/TIP
WHEEL GRINDING SPEED: 3500`3800RPM
WHEEL SIZE: 80*100*32*7MM
PRECISION: MAX 0.02MM
POWER: 4.5KW
DIMENSION: 1760*1520*1920MM (L*W*H)
WEIGHT: 2100KG
Highlight:

High Accuracy tct blade sharpening

,

High Precision tct blade sharpening

,

CNC tct blade sharpening
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: NS700
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

Product Description

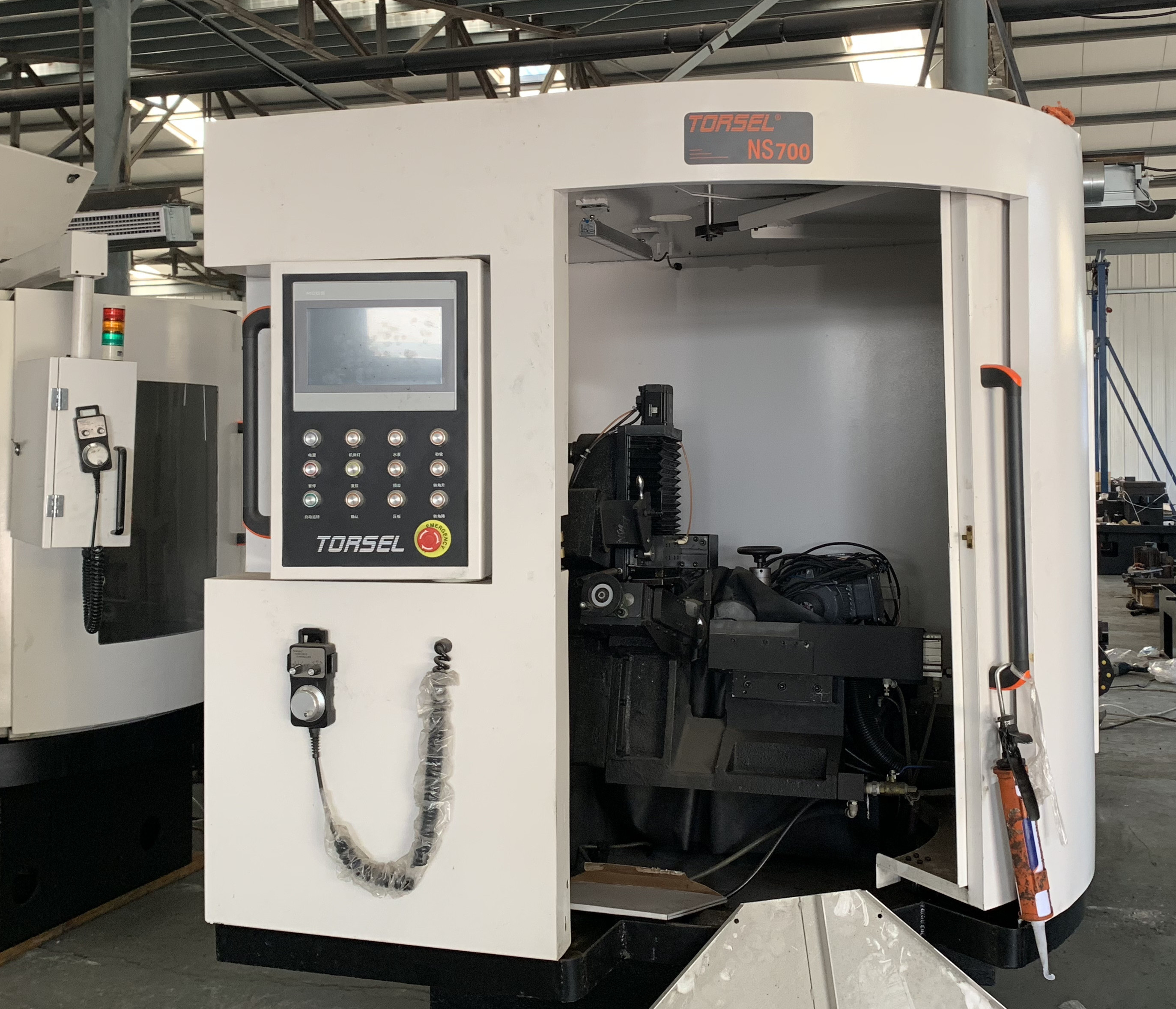

NS700 Saw Blade Dual Side Grinding Machine,

It is mainly used for grinding the side

of high-end power tools, general aluminum alloy saw blades and general board furniture saw blades.

This model is designed both for saw blade manufacturing & retipping.
High Accuracy High Precision CNC Saw Blade Grinding Machine 0High Accuracy High Precision CNC Saw Blade Grinding Machine 1
High Accuracy High Precision CNC Saw Blade Grinding Machine 2


High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <700mm
• Function: Dual Side asharpening
• Precision: <0.02mm
• Model: NS 700
• High precision, more function & more productivity, PURCHASE is cost-effective.

Cooperation Companys

High Accuracy High Precision CNC Saw Blade Grinding Machine 3

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.01mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
High Accuracy High Precision CNC Saw Blade Grinding Machine 4



Technical Premeter
Saw Diameter 120~810mm
Plate Thickness 0.5~8mm
Side Relief -5°~ 5°
Side Angle -5°~ 5°
Hook Angle -5°~28°
Bore Diameter 12~120mm
Pitch 2~65mm
Teeth Length 1~15mm
Wheel Size 150-200mm*32mm
Wheel Speed 2500~3500RPM
Grinding Speed 4~20s /tip
Power 4.5KW
Dimension 2100*1680*1900mm
Weight 2200kg


Configuration
Ball Screw IF(Germany)
Crossed Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



Please contact with me for more information:


High Accuracy High Precision CNC Saw Blade Grinding Machine 5
High Accuracy High Precision CNC Saw Blade Grinding Machine 6
High Accuracy High Precision CNC Saw Blade Grinding Machine 7




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
High Accuracy High Precision CNC Saw Blade Grinding Machine 8
