Home /Products/CNC Saw Blade Grinding Machine/High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening

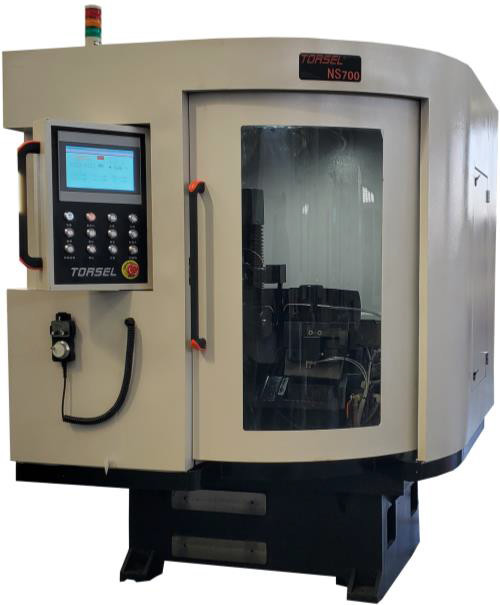

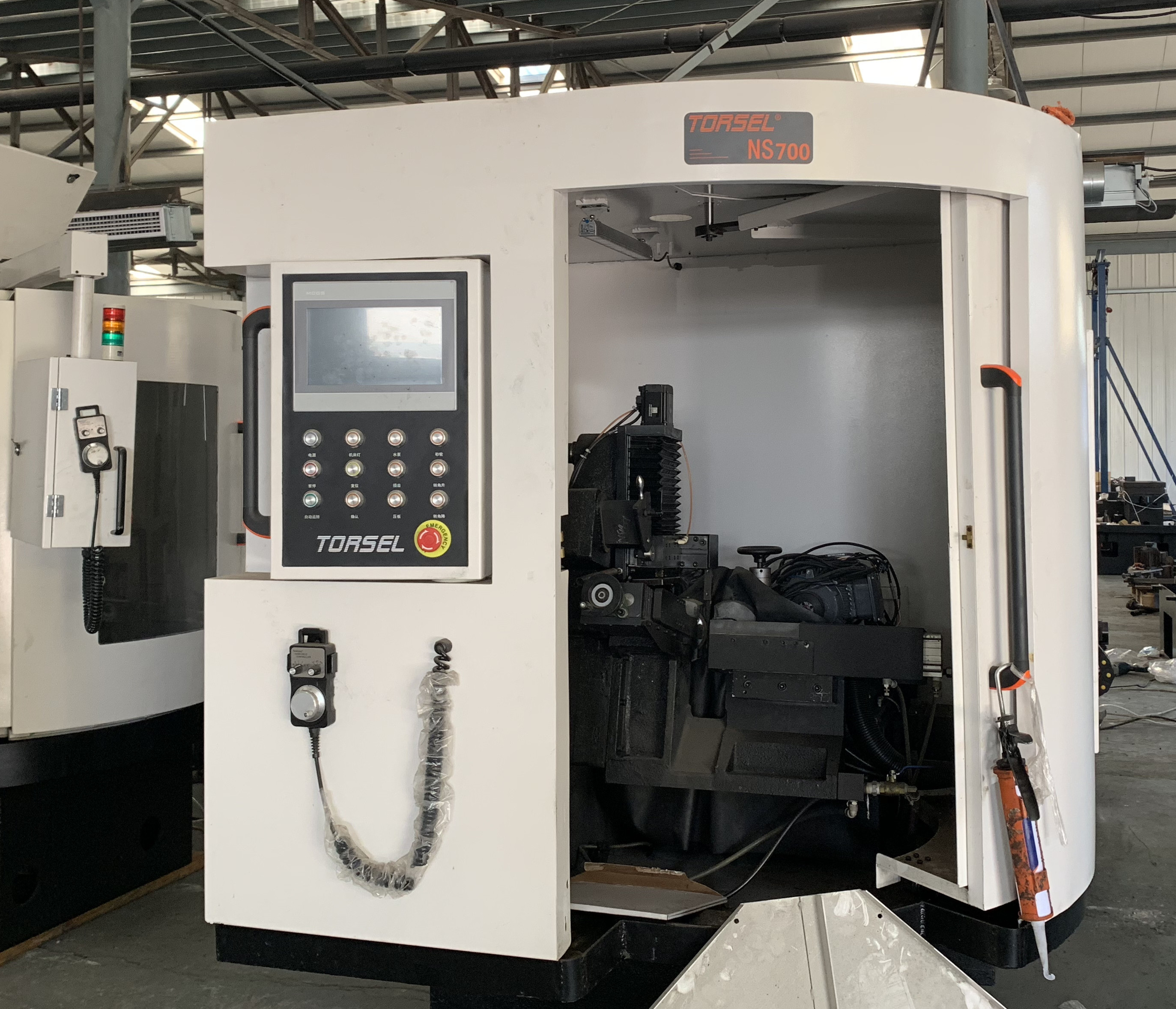

High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening

1
MOQ
18000~24000
Price
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: DUAL SIDE GRINDING
MAX DIA.: 120-700MM
THICKNESS: 0.5-10MM
HOOK ANGLE: -5°~30°
CENTRIPETAL: -5°~5°
CIRCUMFERENTIAL RANGE: 0°~5°
TIPS LENGTH RANGE: 3~10.5MM
PITCH: 2~65MM
Grinding Wheel Speed: 4~20S/TIP
WHEEL GRINDING SPEED: 3500`3800RPM
WHEEL SIZE: 80*100*32*7MM
PRECISION: MAX 0.02MM
POWER: 4.5KW
DIMENSION: 1760*1520*1920MM (L*W*H)
WEIGHT: 2100KG
Highlight:

CNC saw and blade sharpening

,

saw and blade sharpening Grinding

,

High Accuracy saw and blade sharpening
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: NS700
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

NS700 Circular Saw Blade Grinding Machine for Wood Cutting Saw Blade Sharpening









Product Description

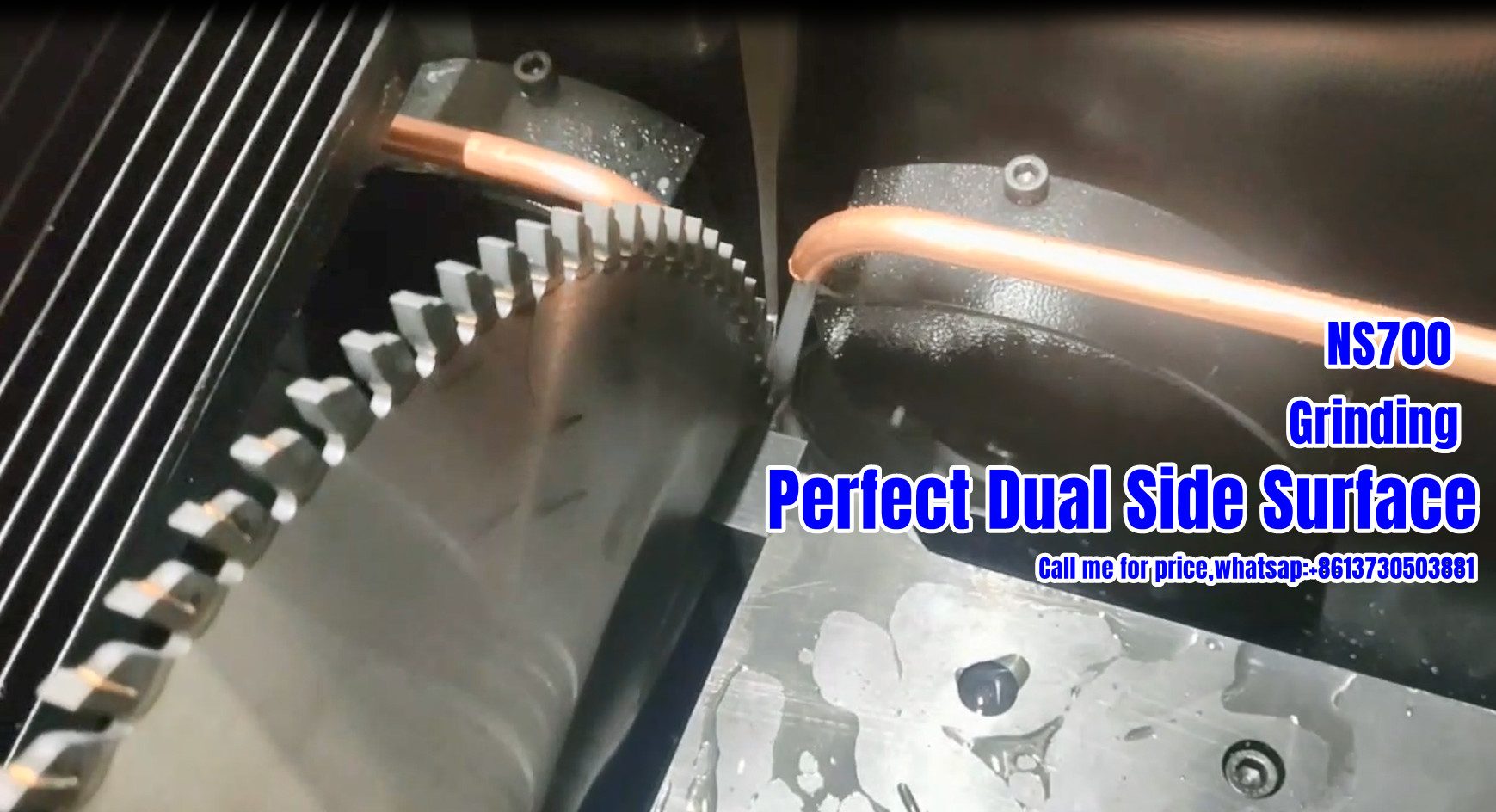

NS700 CNC TCT Saw Blade Sharpening Machine is specially designed for circular cabide tips saw blade dual side grinding.

It is mainly used for grinding the side of high-end power tools, general aluminum alloy saw blades and general board furniture saw blades.

Application: saw blade manufacturing & retipping with higher accuracy and higher productivity.
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 0High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 1
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 2


High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <700mm
• Function: Dual Side asharpening
• Precision: <0.02mm
• Model: NS 700
• High precision, more function & more productivity, PURCHASE is cost-effective.

Cooperation Companys

High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 3

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.01mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 4



Technical Premeter
Saw Diameter 120~810mm
Plate Thickness 0.5~8mm
Side Relief -5°~ 5°
Side Angle -5°~ 5°
Hook Angle -5°~28°
Bore Diameter 12~120mm
Pitch 2~65mm
Teeth Length 1~15mm
Wheel Size 150-200mm*32mm
Wheel Speed 2500~3500RPM
Grinding Speed 4~20s /tip
Power 4.5KW
Dimension 2100*1680*1900mm
Weight 2200kg


Configuration
Ball Screw IF(Germany)
Crossed Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



Please contact with me for more information:


High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 5
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 6
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 7




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
High Accuracy CNC Saw Blade Grinding Machine Saw And Blade Sharpening 8
