Name: Steel Cutting Sharpening Circular Blade Grinding Machine
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: NS2500
Price: 46,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: METAL COLD SAW BLADE DUAL SIDE GRINDING

MAX DIA.: 600~2500MM

THICKNESS: 1~15MM

HOOK ANGLE: -5°~28°

CENTRIPETAL: -5°~5°

CIRCUMFERENTIAL RANGE: -5°~5°

TIPS LENGTH RANGE: 2~20MM

PITCH: 5~500MM

Grinding Wheel Speed: 6~20S/TIP

WHEEL GRINDING SPEED: 3000`6000RPM

WHEEL SIZE: 125*32MM

PRECISION: < 0.02MM

POWER: 10KW

DIMENSION: 3900*1950*2300MM (L*W*H)

WEIGHT: 7000KG

Highlight:

Steel Cutting circular blade grinding machine

Sharpening circular blade grinding machine

circular blade grinding machine Sharpening

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: NS2500

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

Steel Cutting Sharpening Circular Blade Grinding Machine

Product Description

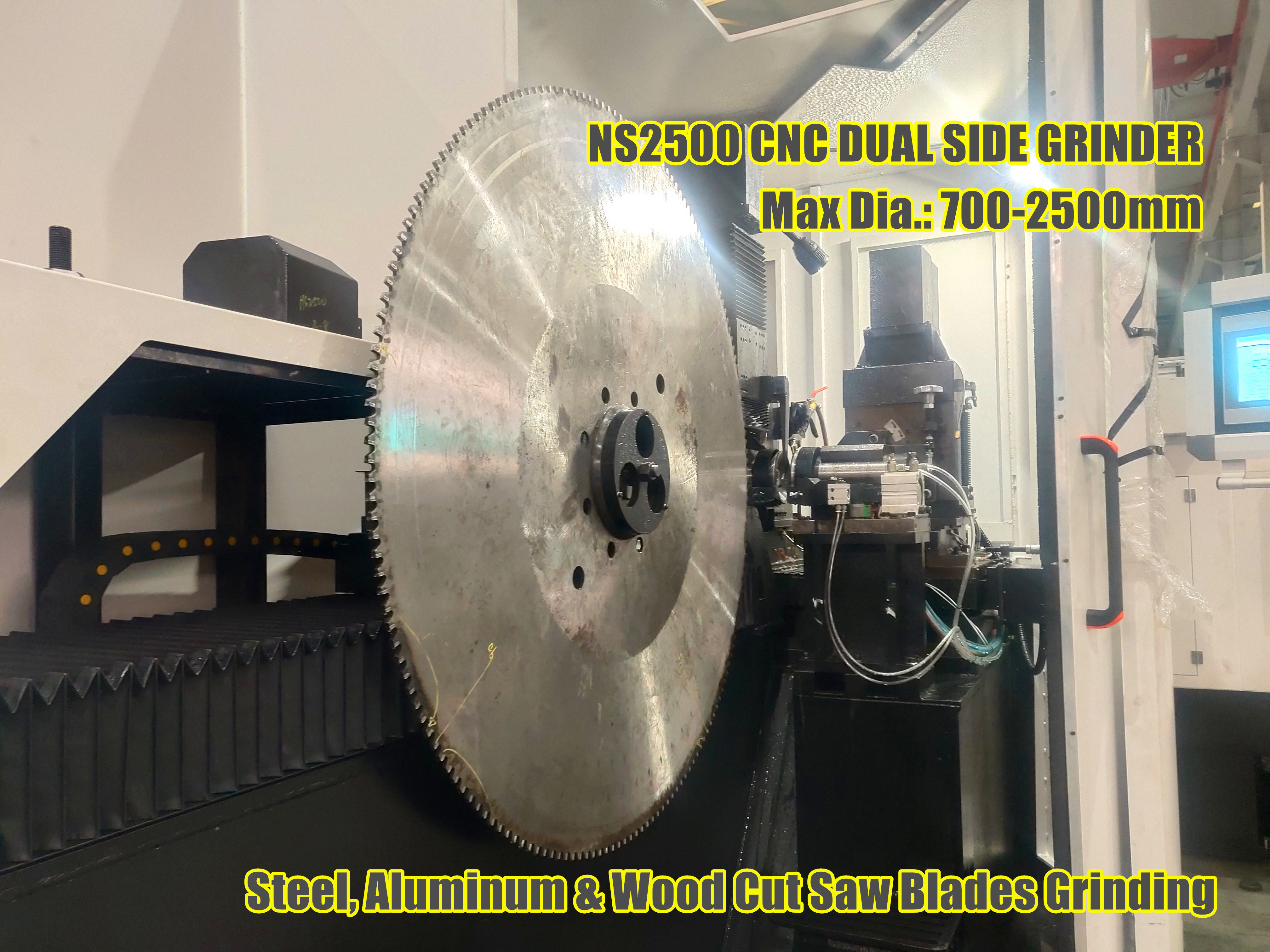

Introducing the NS2500 Metal Cold Saw Blade Dual Side Grinding Machine, a specialized solution designed for the manufacturing and grinding of metal cold cutting saw blades. It's particularly effective for steel tube and steel bar cutting saw blades. This high-precision CNC grinding machine can handle saw blades with diameters from 500 to 2500mm, making it an essential tool for 2500mm metal cold saws manufacturing. Plus, it can connect to your MES system via Wi-Fi for seamless workflow integration.

Steel Cutting Sharpening Circular Blade Grinding Machine 0

Steel Cutting Sharpening Circular Blade Grinding Machine 1

High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <2500mm
• Function: Dual Side asharpening
• Precision: <0.02mm
• Model: NS 2500
• High precision, more function & more productivity, PURCHASE is cost-effective.

Cooperation Companys

Steel Cutting Sharpening Circular Blade Grinding Machine 3

Steel Cutting Sharpening Circular Blade Grinding Machine 3

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
Steel Cutting Sharpening Circular Blade Grinding Machine 4

Technical Premeter

Saw Diameter	600~2500mm
Plate Thickness	1~15mm
Side Relief	-5°~ 5°
Side Angle	-5°~ 5°
Hook Angle	-5°~28°
Bore Diameter	30~200mm
Pitch	5~500mm
Teeth Length	2~20mm
Wheel Size	125mm*32mm
Wheel Speed	3000~6000RPM
Grinding Speed	6~20s /tip
Power	10KW
Dimension	390019502300mm
Weight	7000kg

Configuration

Ball Screw	IF(Germany)
Crossed Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

Please contact with me for more information:

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
Steel Cutting Sharpening Circular Blade Grinding Machine 8

Steel Cutting Sharpening Circular Blade Grinding Machine 8
