TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine

1
MOQ
44000~49000
Price
TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: METAL COLD SAW BLADE DUAL SIDE GRINDING
MAX DIA.: 500~1500MM
THICKNESS: 1~15MM
HOOK ANGLE: -5°~28°
CENTRIPETAL: -5°~5°
CIRCUMFERENTIAL RANGE: -5°~5°
TIPS LENGTH RANGE: 2~20MM
PITCH: 5~500MM
Grinding Wheel Speed: 6~20S/TIP
WHEEL GRINDING SPEED: 3000`6000RPM
WHEEL SIZE: 125*32MM
PRECISION: < 0.02MM
POWER: 9KW
DIMENSION: 2900*1950*2300MM (L*W*H)
WEIGHT: 5500KG
Highlight:

TORSEL automatic saw blade sharpener

,

High Accuracy automatic saw blade sharpener

,

High Precision automatic saw blade sharpener
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: NS1500
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description



Product Description

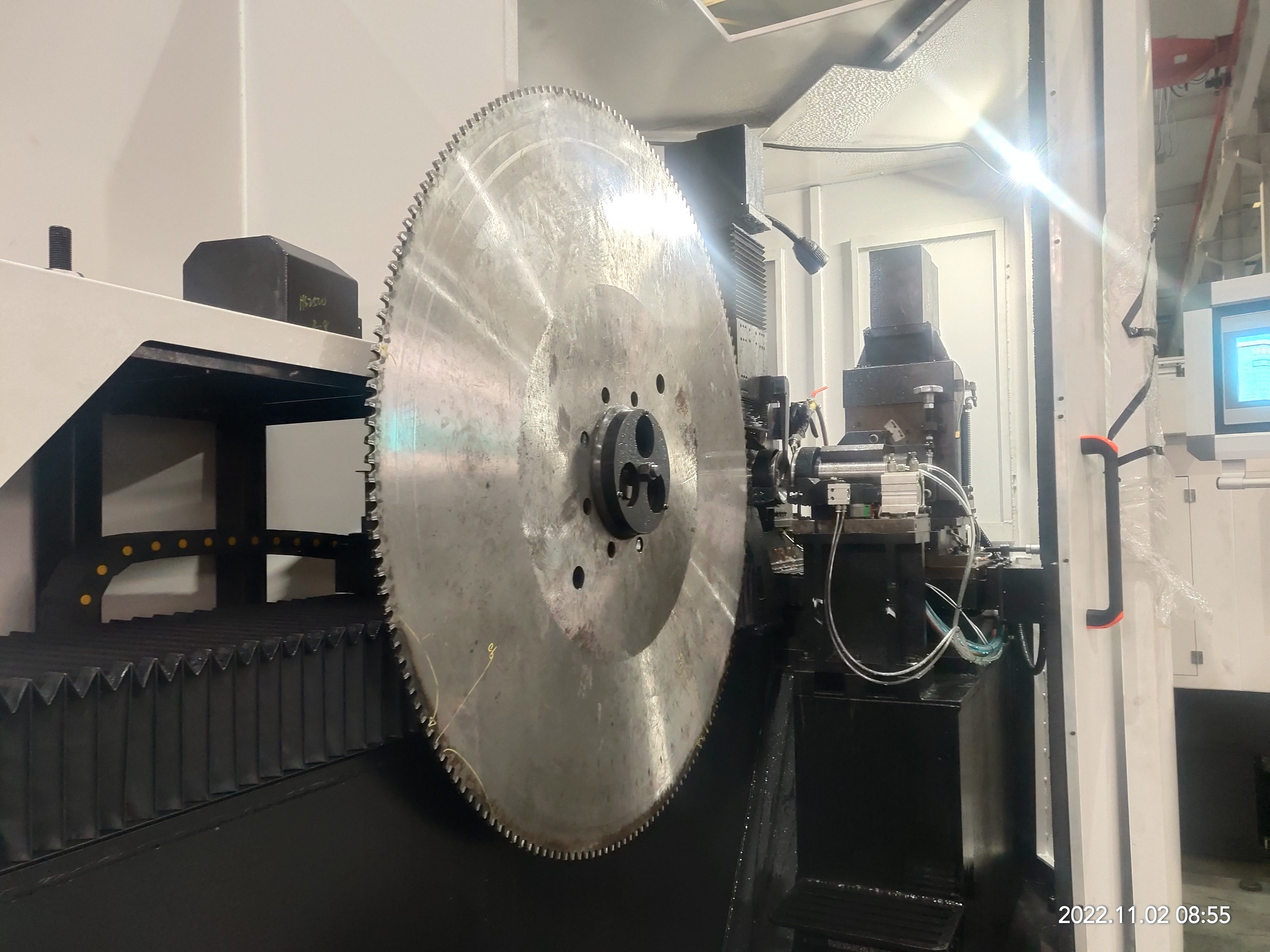

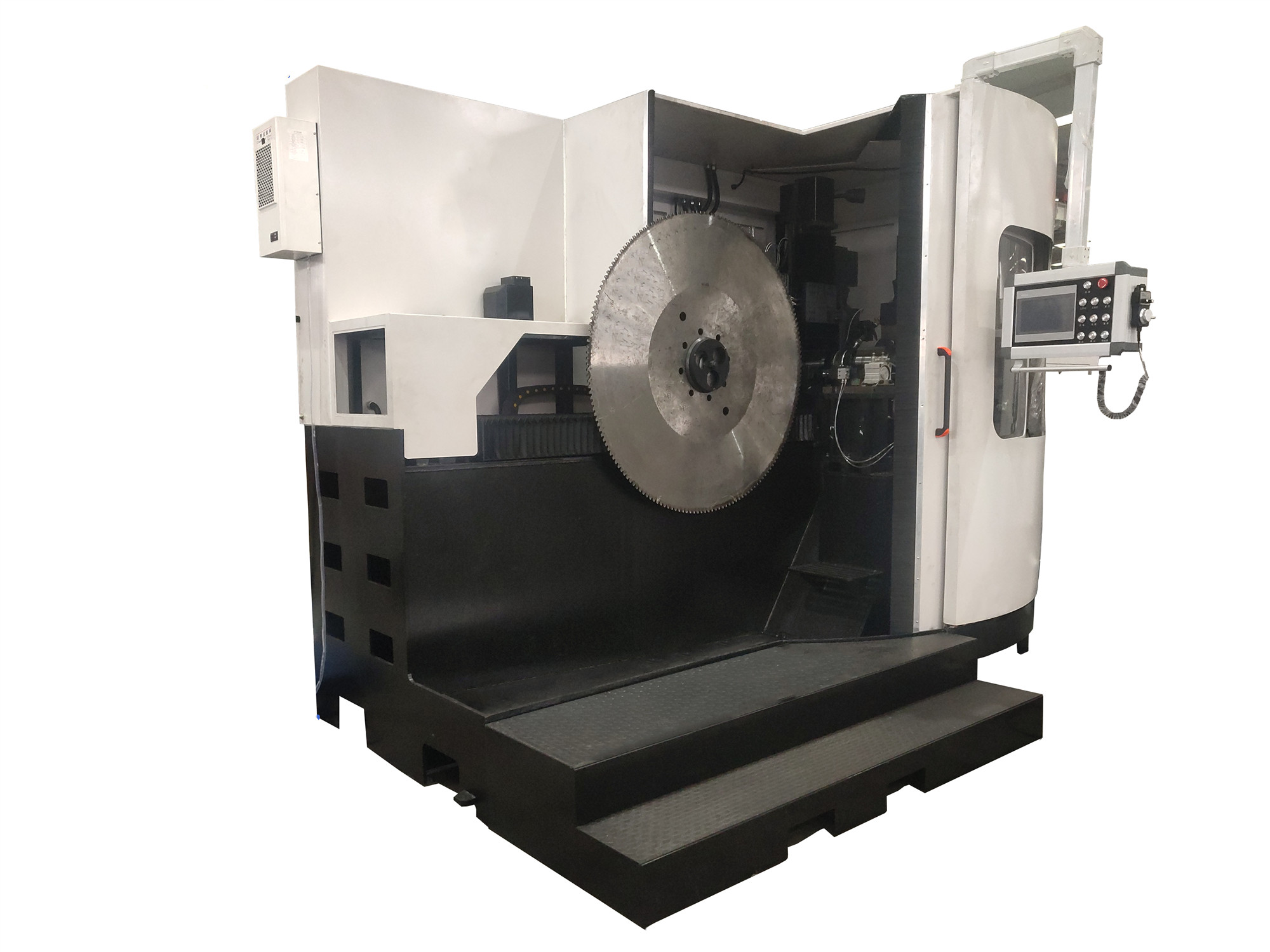

NS1500 Metal Cold Saw Blade Dual Side Grinding Machine is a specialized tool engineered for the manufacturing and resharpening of metal cold saw blades. It's an essential asset for those working with steel tube and steel bar cutting saw blades. As a high-precision grinding machine, the NS1500 is the go-to choice for those seeking a top-quality metal cold saw blade grinder.





TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 0


TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 1


TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 2


High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <1500mm
• Function: Dual Side asharpening
• Precision: <0.02mm
• Model: NS 1500
• High precision, more function & more productivity, PURCHASE is cost-effective.

Cooperation Companys

TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 3

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 4



Technical Premeter
Saw Diameter 500~1500mm
Plate Thickness 1~15mm
Side Relief -5°~ 5°
Side Angle -5°~ 5°
Hook Angle -5°~28°
Bore Diameter 30~200mm
Pitch 5~500mm
Teeth Length 2~20mm
Wheel Size 125mm*32mm
Wheel Speed 3000~6000RPM
Grinding Speed 6~20s /tip
Power 9KW
Dimension 2900*1950*2300mm
Weight 5500kg


Configuration
Ball Screw IF(Germany)
Crossed Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



Please contact with me for more information:


TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 5
TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 6
TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 7




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?
TORSEL High Accuracy Automatic Saw Blade Sharpener Dual Side Grinding Machine 8
