High Precision Tct Saw Blade Sharpening Machine With Loader

1
MOQ
52000~63000
Price
High Precision Tct Saw Blade Sharpening Machine With Loader
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: TCT TOP & FACE & SIDE GRINDING
MAX DIA.: 110~320MM
THICKNESS: 0.5-5MM
HOOK ANGLE: -15°~15°
TOP ANGLE: 8°~20°
TIPS LENGTH RANGE: 1~15MM
PITCH: 2~65MM
Grinding Wheel Speed: 4~10S/TIP
WHEEL GRINDING SPEED: 3500`5500RPM
FACE WHEEL SIZE: 80*100MM
PRECISION: < 0.03MM
POWER: 8KW
DIMENSION: 3500*1950*3200MM (L*W*H)
WEIGHT: 3400KG
FUNCTION-3: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL OPERATION
FUNCTION-4: SAVE LABOR COST
FUNCTION-5: 7*24 HOURS WORKING
FUNCTION-6: INCREASE PRODUCTIVITY & EFFICIENCY
SIDE ANGLE: -5°~5°
Highlight:

TORSEL tct saw grinder

,

saw blade sharpening equipment With Loader

,

TORSEL saw blade sharpening equipment
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: TFS260/TFS320
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

TFS260/TFS320 T.C.T. Saw Blades Sharpening Machine with Loader



Product Description

TFS260/TFS320 is intergrated top/face/side angle specially designed for T.C.T. woodworking,aluminum cutting saw blades grinding,  it is the special grinding solutions for saw blade manufacturer,who want to produce 105-320mm saw blade, with economic investment cost. Specially designed for carbide tips TOP/FACE/SIDE angle sharpening; picking & placing saws, grinding saws in top/face/side working position ares are finished in one cycle set,no need to change wheel.


• Saw blade Diameter: < 320mm
• Function: TOP / FACE / SIDE sharpening
• Precision: <0.03mm
• Pitch:<65mm
• Cooperation Company

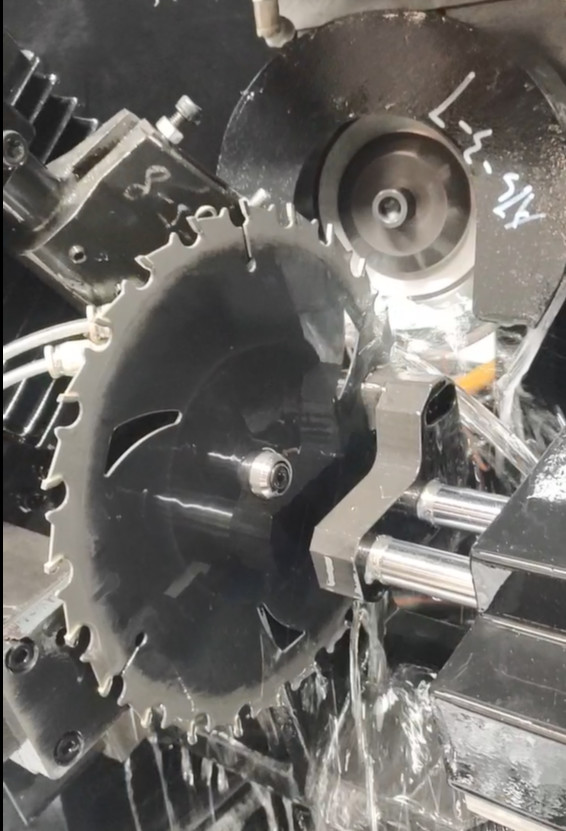

High Precision Tct Saw Blade Sharpening Machine With Loader 0

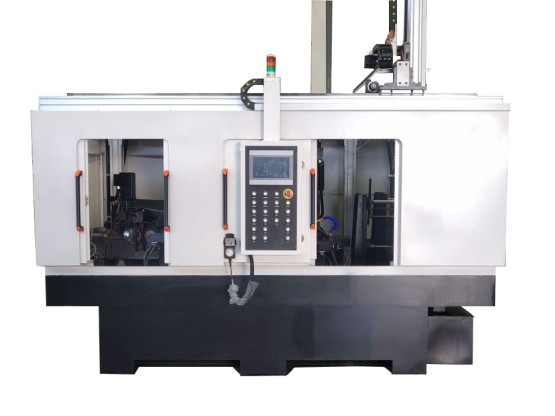

High Precision Tct Saw Blade Sharpening Machine With Loader 1

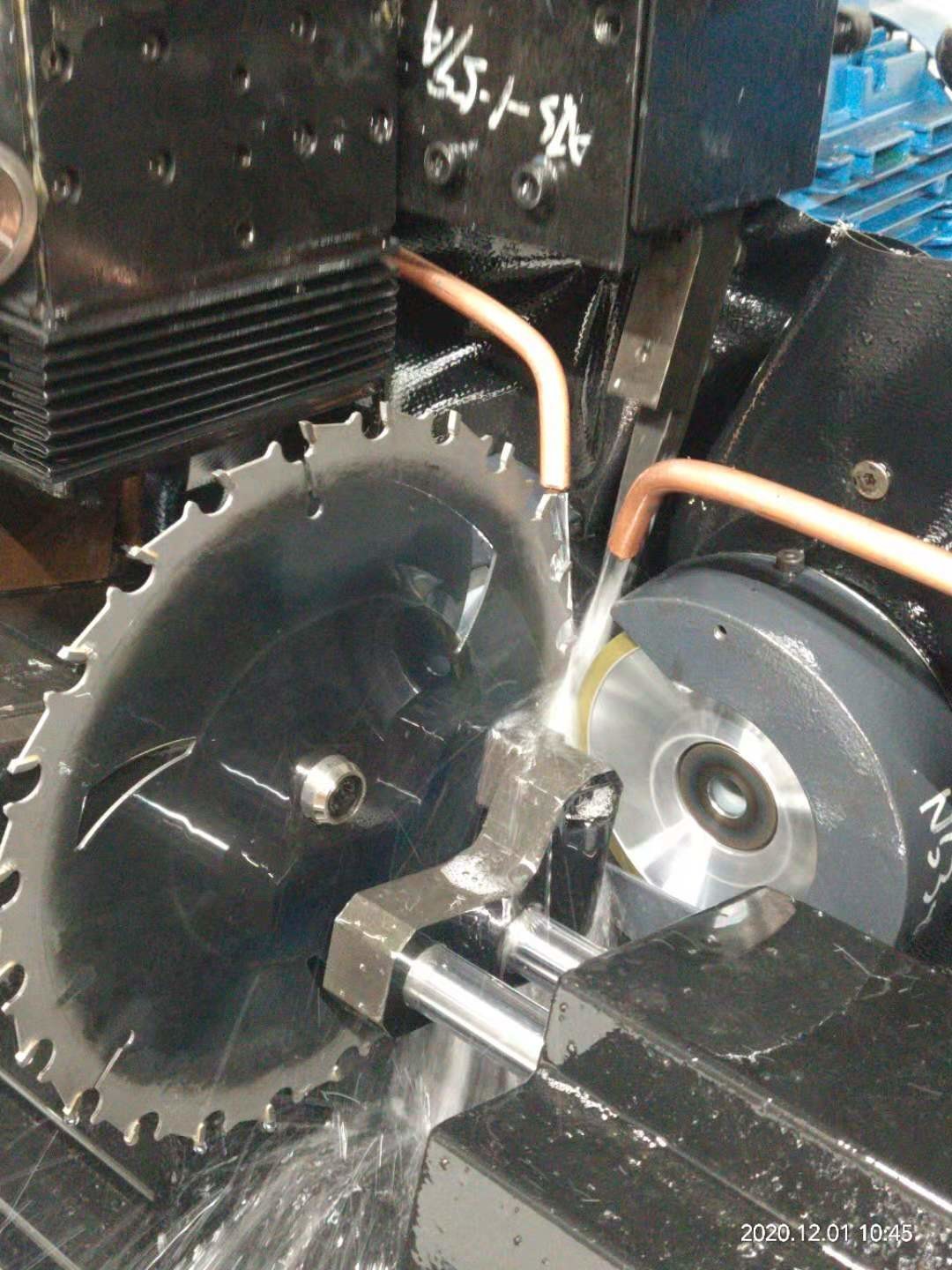

High Precision Tct Saw Blade Sharpening Machine With Loader 2







Advantages of sawblade grinding machine

• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding dual side angle are finished in one cycle set automatically;
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;
• More Function- grinding TOP & FACE & SIDE of tct saw blades




High Precision Tct Saw Blade Sharpening Machine With Loader 3





Technical Premeter

Model TFS260 TFS320
Saw blade Diameter 110~260mm 110~320mm
Saw blade Thickness 0.5~5mm 0.5~5mm
Hook angle -15°~ 15° -15°~ 15°
Side angle -5°~ 5° -5°~ 5°
Side relief 0°~ 5° 0°~ 5°
Top angle 8°~ 20° 8°~ 20°
Bevel angle -45°~ 45° -45°~ 45°
Bore diameter 12~30mm(12~50mm) 12~30mm(12~50mm)
Tooth pitch 2-65mm 2-65mm
Tip length 1-15mm 1-15mm
Face Wheel diameter Φ150~Φ32X16mm Φ150~Φ32X16mm
Wheel speed 3500~5500RPM 3500~5500RPM
Side wheel Dia Φ80~Φ100mm Φ80~Φ100mm
Side wheel speed 5000RPM 5000RPM
Top wheel Dia Φ125mm Φ125mm
Top wheel speed 3500~5500RPM 3500~5500RPM
Working efficiency 4~10S/Tip 4~10S/Tip
Machining accuracy <0.03mm <0.03mm
Power 8kw 8kw
Machine dimensions 2660L*1650W*3000H; 3500*1950*3200H
Weight 3400kg 3500kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



High Precision Tct Saw Blade Sharpening Machine With Loader 4
High Precision Tct Saw Blade Sharpening Machine With Loader 5
High Precision Tct Saw Blade Sharpening Machine With Loader 6




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

High Precision Tct Saw Blade Sharpening Machine With Loader 7
