Home /Products/TCT Saw Blade Sharpening Machine/Grinding Tct Saw Blade Sharpening Machine Woodworking Industries

Grinding Tct Saw Blade Sharpening Machine Woodworking Industries

1
MOQ
52000~54000
Price
Grinding Tct Saw Blade Sharpening Machine Woodworking Industries
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: TCT TOP & FACE GRINDING
MAX DIA.: 110~260MM
THICKNESS: 0.5-5MM
HOOK ANGLE: -15°~15°
TOP ANGLE: 8°~20°
TIPS LENGTH RANGE: 1~15MM
PITCH: 2~65MM
Grinding Wheel Speed: 4~10S/TIP
WHEEL GRINDING SPEED: 3500`5500RPM
FACE WHEEL SIZE: 80*100MM
PRECISION: < 0.03MM
POWER: 8KW
DIMENSION: 3500*1950*3200MM (L*W*H)
WEIGHT: 3400KG
FUNCTION-3: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL OPERATION
FUNCTION-4: SAVE LABOR COST
FUNCTION-5: 7*24 HOURS WORKING
FUNCTION-6: INCREASE PRODUCTIVITY & EFFICIENCY
Highlight:

Grinding tct saw blade sharpening machine

,

Woodworking tct saw blade sharpening machine

,

Woodworking Industries tct blade sharpening machine
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: ATF260
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

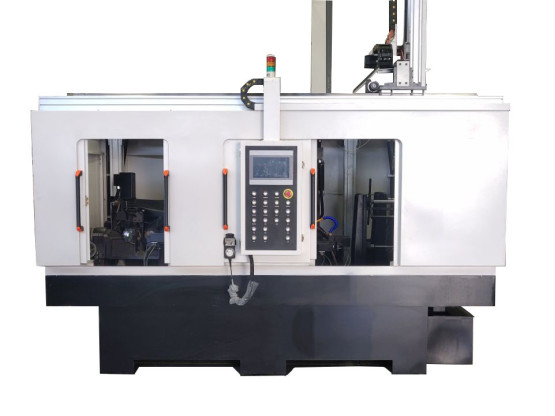

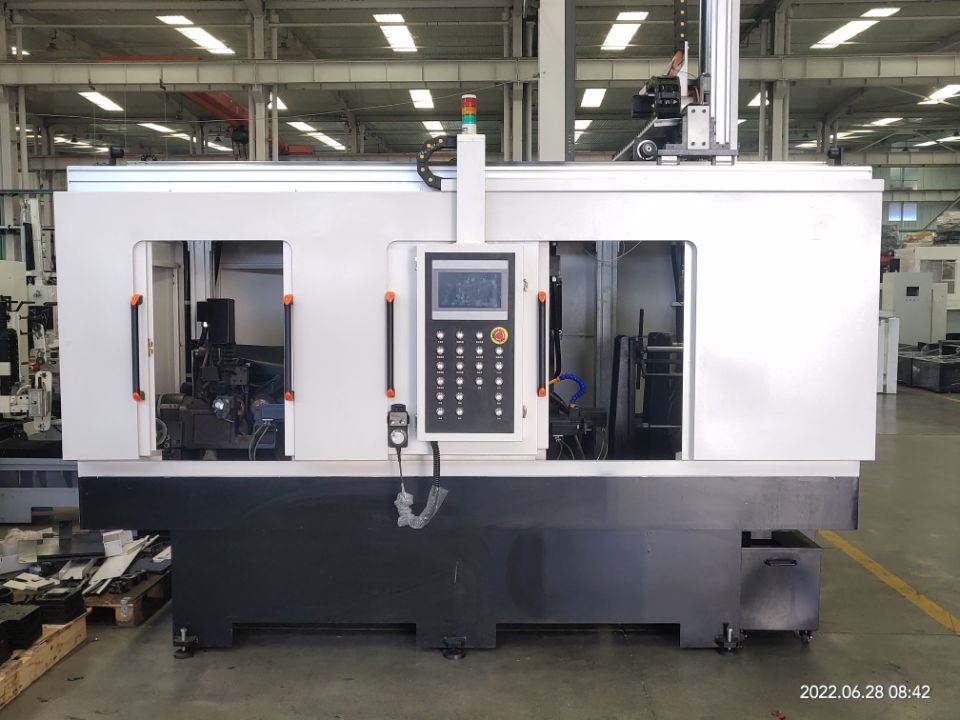

ATF260 CNC Saw Blades Grinding Machine with Loader



Product Description

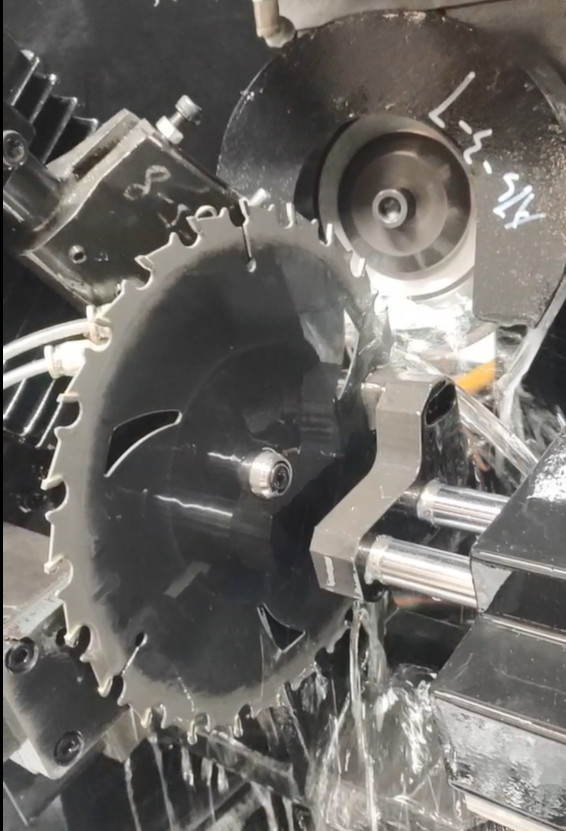

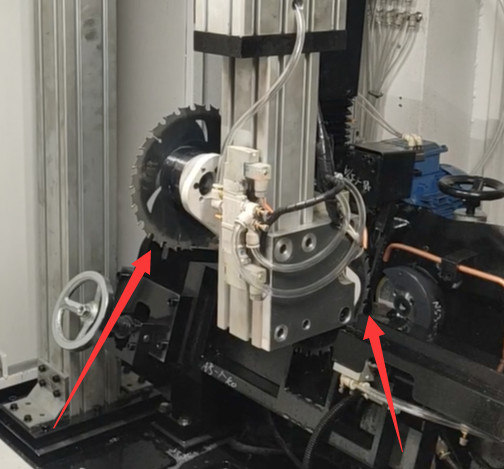

ATF260 12-axis servo mechanism permanent magnet synchronous motorized spindle, 3 Servo motors for loaders picking & placing saws in up-down, left-right, back- forward direction movement, 9 servo motors for CNC TCT circular saw blades grinding,  specially for carbide tips TOP/FACE angle sharpening; picking & placing saws, grinding saws in top/side working position ares are finished in one cycle set,no need to change wheel.


• Saw blade Diameter: < 260mm
• Function: TOP / FACE sharpening
• Precision: <0.03mm
• Pitch:<65mm
• Cooperation Company
Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 0



Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 1







Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 2







Advantages of sawblade grinding machine

• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding dual side angle are finished in one cycle set automatically;
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;
• More Function- grinding TOP & FACE of tct saw blades




Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 3





Technical Premeter

Model ATF260
Saw blade Diameter 110~260mm
Saw blade Thickness 0.5~5mm
Hook angle -15°~ 15°
Top angle 8°~ 20°
Bevel angle -45°~ 45°
Bore diameter 12~30mm(12~50mm)
Tooth pitch 2-65mm
Tip length 1-15mm
Face Wheel diameter Φ150~Φ32X16mm
Wheel speed 3500~5500RPM
Side wheel Dia Φ80~Φ100mm
Side wheel speed 5000RPM
Top wheel Dia Φ125~32*16mm
Top wheel speed 3500~5500RPM
Working efficiency 4~10S/Tip
Machining accuracy <0.03mm
Power 8kw
Machine dimensions 2660L*1650W*3000H;
Weight 3400kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 4
Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 5
Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 6




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

Grinding Tct Saw Blade Sharpening Machine Woodworking Industries 7
