Name: Full Automatic TORSEL Tct Grinding Machine Woodworking
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: AF650
Price: 24,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: FACE ANGLE GRINDING

MAX DIA.: 120-800MM

THICKNESS: 0.5-10MM

HOOK ANGLE: -5°~30°

BEVEL ANGLE: -15°~15°

CIRCUMFERENTIAL RANGE: 0°~5°

TIPS LENGTH RANGE: 1~15MM

PITCH: 2~65MM

Grinding Wheel Speed: 3.5~20S/TIP

WHEEL GRINDING SPEED: 3500`5800RPM

WHEEL SIZE: 150*32*16MM

PRECISION: < 0.03MM

POWER: 4KW

DIMENSION: 1465*1180*1850MM (L*W*H)

WEIGHT: 1300KG

Highlight:

Full Automatic tct grinding machine

tct grinding machine Woodworking

TORSEL tct grinding machine

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: AF650

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

Full Automatic TORSEL Tct Grinding Machine Woodworking

Product Description

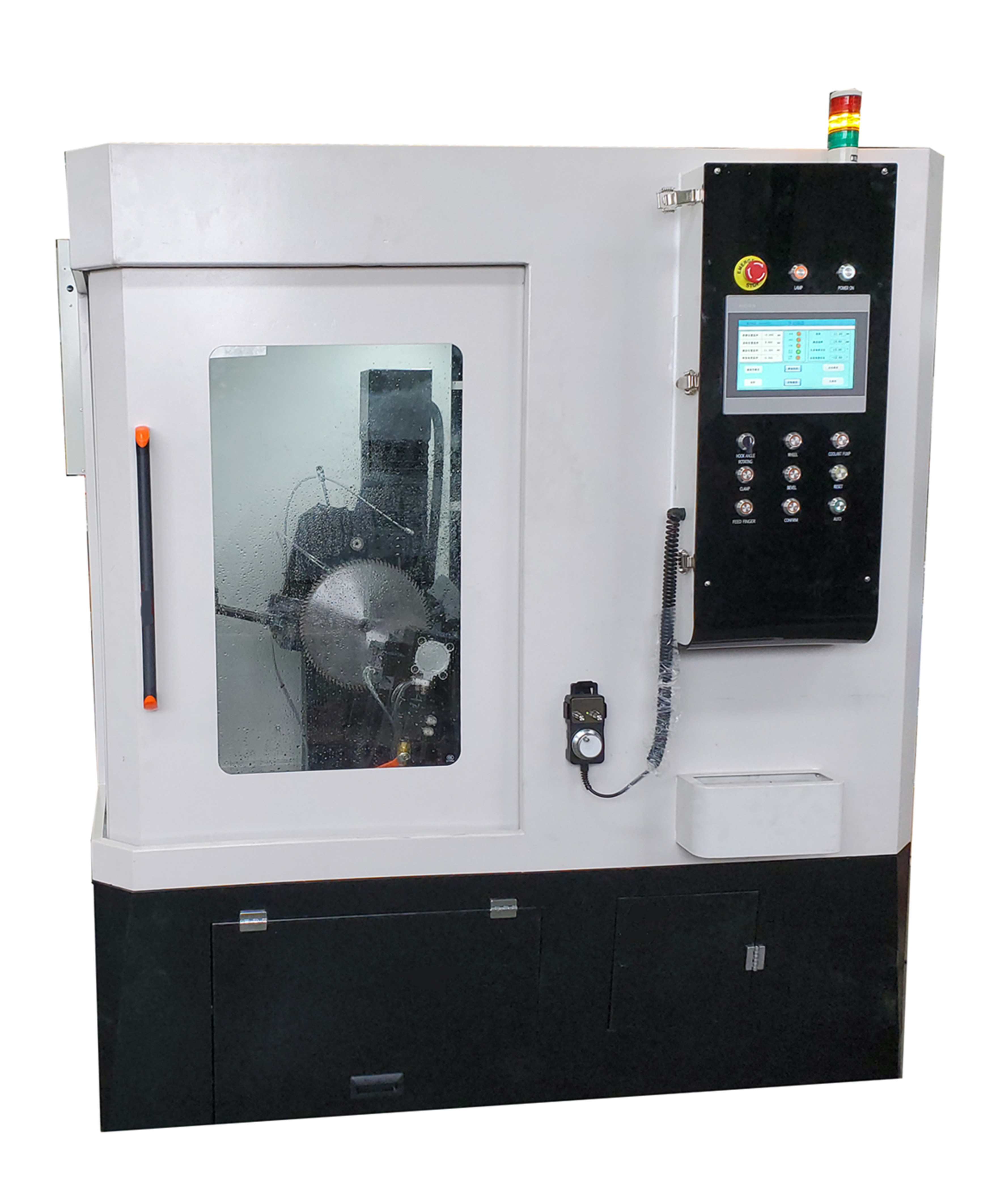

AF650 TCT Saw Blade Sharpening Machine for Woodworking Saws Gridning

Product Description

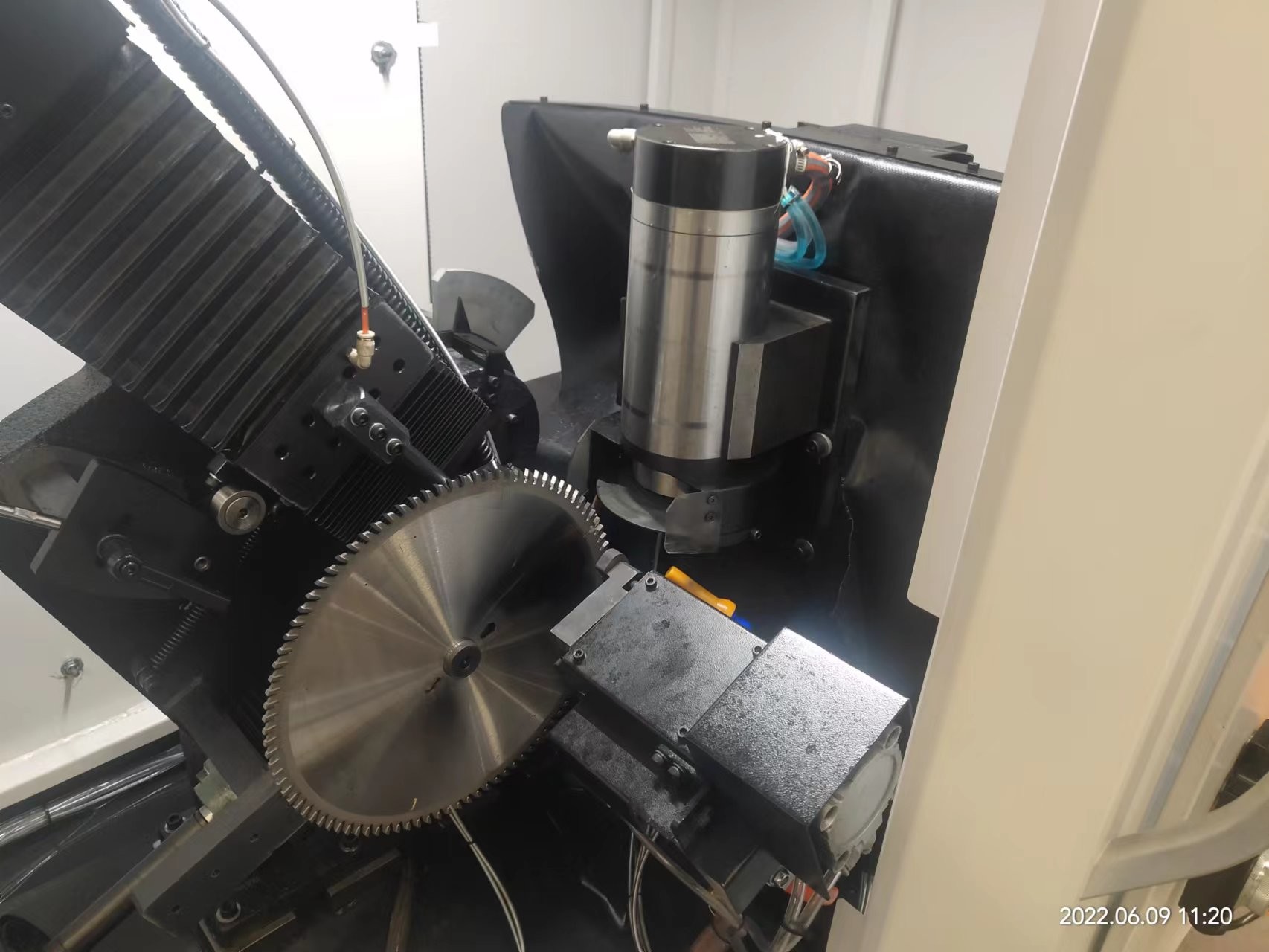

AF650 T.C.T. Circular Saw Blade Sharpening Machine for TCT saw blade face tips angle sharpening, it is more suitable for T.C.T. wood working, aluminum circular saw blade grinding & resharpening. This grinder is more smart for working.

• Saw blade Diameter: < 800mm
• Function: face angle sharpening
• Precision: <0.03mm
• Model: AF650
• Pitch:<65mm
• Cooperation Company
Full Automatic TORSEL Tct Grinding Machine Woodworking 0

Full Automatic TORSEL Tct Grinding Machine Woodworking 2

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;
• More Function- grinding FACE ANGLE of sawblade

Full Automatic TORSEL Tct Grinding Machine Woodworking 4

Technical Premeter

Model	AF650
Saw Diameter	120~800mm
Plate Thickness	0.5~10mm
Hook Angle	-5°~30°
Bevel Angle	-15°~15°
Bore Diameter	12~120mm
Pitch	2~65mm
Tip Length	1`15mm
Wheel Power	0.75KW
Wheel Diameter	1503216mm
Wheel Bore	32mm
Wheel Linear Velocity	30m/s
Grinding Speed	2mm~10mm/s
Processing Efficiency	3.5~20 tip/min
Grinding Accuracy	<0.03mm
Coolant Tank	70 L
Input Voltage	380V 50Hz(OR 220V60Hz)
Power	Approx 4KW
Dimension	1465mm1180mm1850mm
Weight	1300kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

Full Automatic TORSEL Tct Grinding Machine Woodworking 8

Full Automatic TORSEL Tct Grinding Machine Woodworking 8
