Name: High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: ASZ400/ASZ500
Price: 31,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: DUAL SIDE GRINDING

MAX DIA.: 120-505MM

THICKNESS: 0.5-10MM

HOOK ANGLE: -5°~30°

CENTRIPETAL: -5°~5°

CIRCUMFERENTIAL RANGE: 0°~5°

TIPS LENGTH RANGE: 2~15MM

PITCH: 2~100MM

Grinding Wheel Speed: 4~20S/TIP

WHEEL GRINDING SPEED: 3500`3800RPM

WHEEL SIZE: 80*120*32*7MM

PRECISION: < 0.02MM

POWER: 6KW

DIMENSION: 2850*1520*1920MM (L*W*H)

WEIGHT: 2500KG

FEATURES: 7*24 HOURS WORKING

FEATURES-2: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL

FEATURES-3: SAVE LABOR COST

FEATURES-4: INCREASE EFFICIENCY & PRODUCTIVITY

Highlight:

High Accuracy Circular Saw Blade Sharpener

TORSEL CNC Circular Saw Blade Sharpener

CNC Function Circular Saw Blade Sharpener

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: ASZ400/ASZ500

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener

Product Description

ASZ400/ASZ500 Aluminum Cutting Saw Blade Grinding Machine With Loader

Product Description

ASZ400/ASZ500 CNC aluminum cutting saw blade grinding machine with loader for TCT aluminum materials cutting saw blade Sharpening in dual side angle with Robot (PRECISION)
High-level productivity & precision grinding machine for carbide tools.

• Saw blade Diameter: < 505mm
• Function: dual Side sharpening
• Precision: <0.02mm
• Model: ASZ 400 / ASZ 500
• Pitch:<100mm
• Cooperation Company
High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener 0

High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener 1

High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener 2

Advantages of aluminum cutting saw blade grinding machine
• More precision- grinding precision: <0.015mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing aluminum cutting circular saw blades,grinding dual side angle are finished in one cycle set automatically;
• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;
• More Function- grinding DUAL SIDE of sawblade

High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener 4

CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

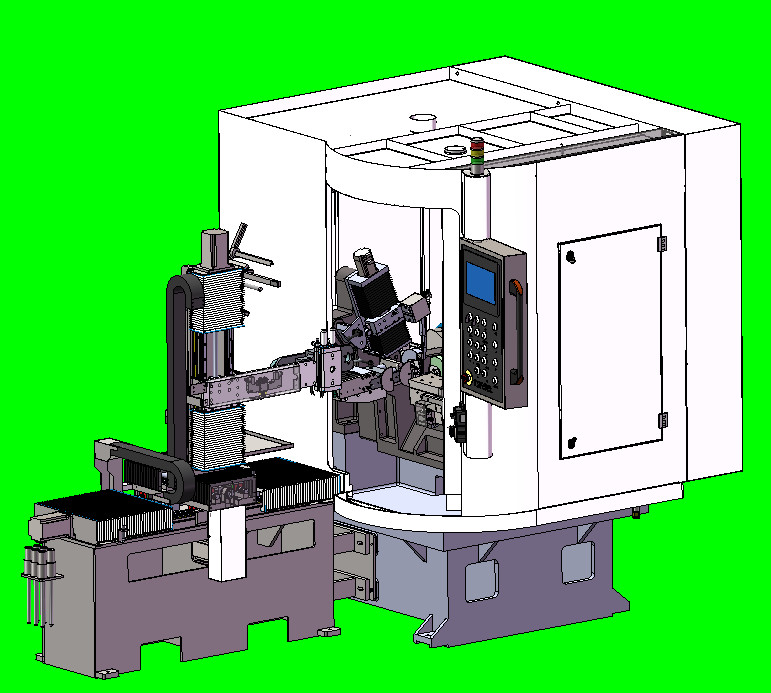

3-D Graphics Grinding Machine

Technical Premeter

Model	ASZ500	ASZ400
Saw Diameter	120~505mm	120~405mm
Plate Thickness	0.5~10mm	0.5~10mm
Centripetal	-5°~5°	-5°~5°
Circumferential	0°~5°	0°~5°
Bore Diameter	12~120mm	12~120mm
Pitch	2~100mm	2~100mm
Tip Length	2`15mm	2`15mm
Wheel Power	0.75KW	0.75KW
Wheel Diameter	80~120mm	80~120mm
Wheel Bore	32mm	32mm
Wheel Linear Velocity	30m/s	30m/s
Grinding Speed	2mm~10mm/s	2mm~10mm/s
Processing Efficiency	4~20 tip/min	4~20 tip/min
Grinding Accuracy	<0.01mm	<0.01mm
Coolant Tank	70 L	70 L
Input Voltage	380V 50Hz(OR 220V60Hz)	380V 50Hz(OR 220V60Hz)
Power	Approx 6KW	Approx 6KW
Dimension	2850mm1520mm1920mm	2650mm1520mm1920mm
Weight	2500kg	2500kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener 11

High Accuracy TORSEL CNC Function Circular Saw Blade Sharpener 11
