Name: TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: CZ900/CZ2500
Price: 27,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: TOOTH POCKET GRINDING

MAX DIA.: 150~2500MM

THICKNESS: 1-20MM

HOOK ANGLE: 30°~-10°

BEVEL ANGLE: 0°

TIPS LENGTH RANGE: 2~20MM

PITCH: 2~100MM

Grinding Wheel Speed: 8~20S/TIP

WHEEL SIZE: 255*25.4*1~6MM

PRECISION: < 0.03MM

POWER: 4KW

DIMENSION: 2700*1500*1600MM (L*W*H)

WEIGHT: 1650KG

Highlight:

TORSEL Cold Saw Blade Sharpening Machine

CNC Cold Saw Blade Sharpening Machine

Cold Saw Blade Sharpening wood working

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: CZ900/CZ2500

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

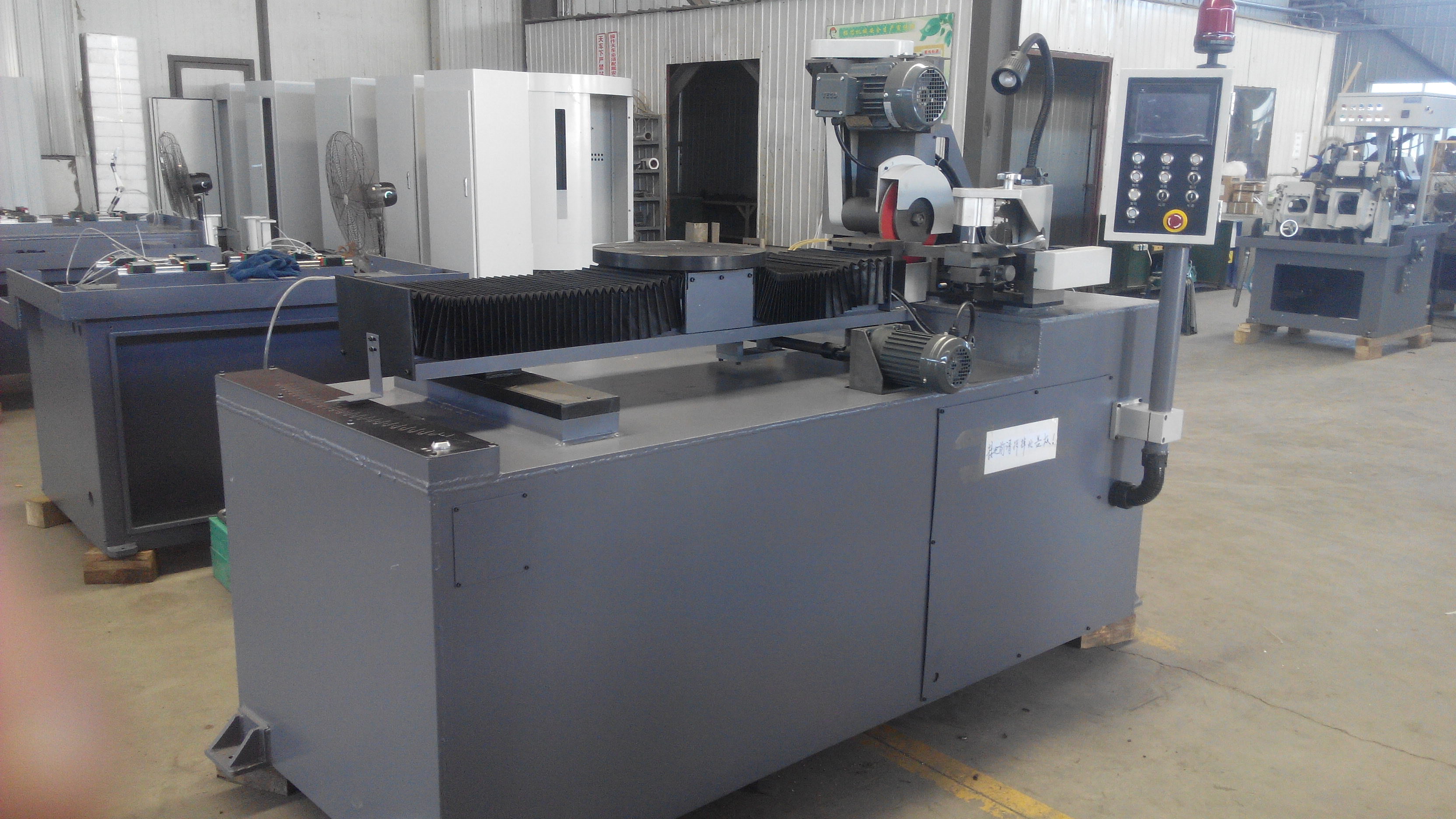

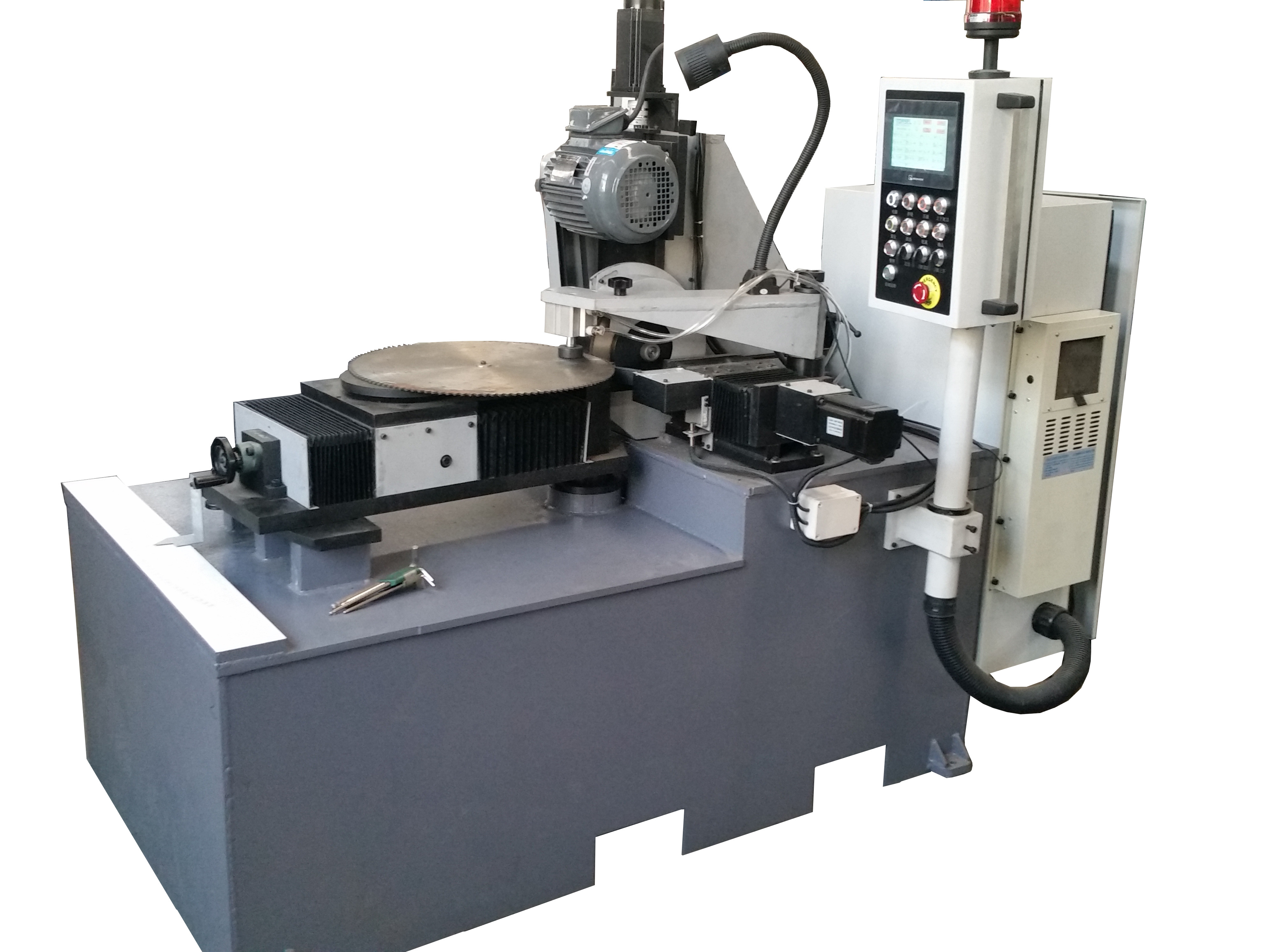

TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working

Product Description

CZ900/CZ2500 Tooth Pocket Grinding Machine with Loader

CZ900/CZ2500 TCT TIPS Circular Cold Saw Machine Tooth Pocket Grinding Machine With Loader

Product Description

CZ900/CZ2500 Tooth Pocket Grinding Machine for TCT TIPS seat sharpening before cermet tips or carbide tips brazing work,with a very smooth tooth pocket surface, to make the tips brazed strongly.

• Saw blade Diameter: < 2500mm
• Function: tooth pocket sharpening
• Precision: <0.03mm
• Pitch:2~100mm
• Cooperation Company
TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working 0

TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working 1

TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working 2

TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working 3

Advantages of sawblade grinding machine

• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;
• More Function- grinding TOOTH POCKET of sawblade

Technical Premeter

Model	CZ900	CZ2500
Saw blade Diameter	150~900mm	550~2500mm
Saw blade Thickness	1~15mm	1~20mm
Hook angle	-10°~ 30°	-10°~ 30°
Bevel angle	0°	0°
Bore diameter	12~120mm	12~120mm
Tooth pitch	2-100mm	2-100mm
Tip length	2-20mm	2-20mm
Wheel diameter	Φ255~Φ25.4X1~6mm	Φ255~Φ25.4X1~6mm
Wheel speed	3500~5500RPM	3500~5500RPM
Working efficiency	8~20S/Tip	8~20S/Tip
Machining accuracy	<0.03mm	<0.03mm
Power	3.5kw	3.5kw
Machine dimensions	1950L1800W2150H;	2700L1500W1600H;
Weight	1200kg	1650kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working 7

TORSEL CNC Cold Saw Blade Sharpening Machine Wood Working 7
