Name: TORSEL Auto Cold Cut Circular Saw Machine Woodworking
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: AC355/AC400
Price: 11,900.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: TOOTH POCKET GRINDING

MAX DIA.: 100-405MM

THICKNESS: 1-5MM

HOOK ANGLE: 30°~-5°

BEVEL ANGLE: 0°

TIPS LENGTH RANGE: 2~12MM

PITCH: 2~70MM

Grinding Wheel Speed: 1.5~4S/TIP

WHEEL SIZE: 255*25.4*1~6MM

PRECISION: < 0.03MM

POWER: 1.5KW

DIMENSION: 1200*700*1200MM (L*W*H)

WEIGHT: 520KG

FUNCTION-3: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL OPERATION

FUNCTION-4: SAVE LABOR COST

FUNCTION-5: 7*24 HOURS WORKING

FUNCTION-6: INCREASE PRODUCTIVITY & EFFICIENCY

Highlight:

TORSEL Cold Cut Circular Saw Machine

Auto Cold Cut Circular Saw Machine

Cold Cut Circular Saw Machine Woodworking

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: AC355/AC400

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

TORSEL Auto Cold Cut Circular Saw Machine Woodworking

Product Description

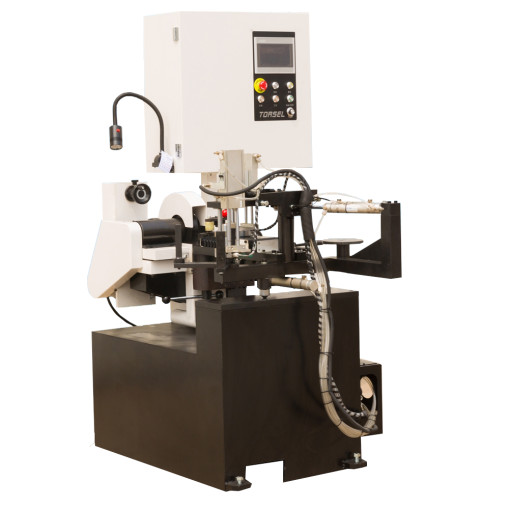

AC355/AC400 Tooth Pocket Grinding Machine with Loader

Product Description

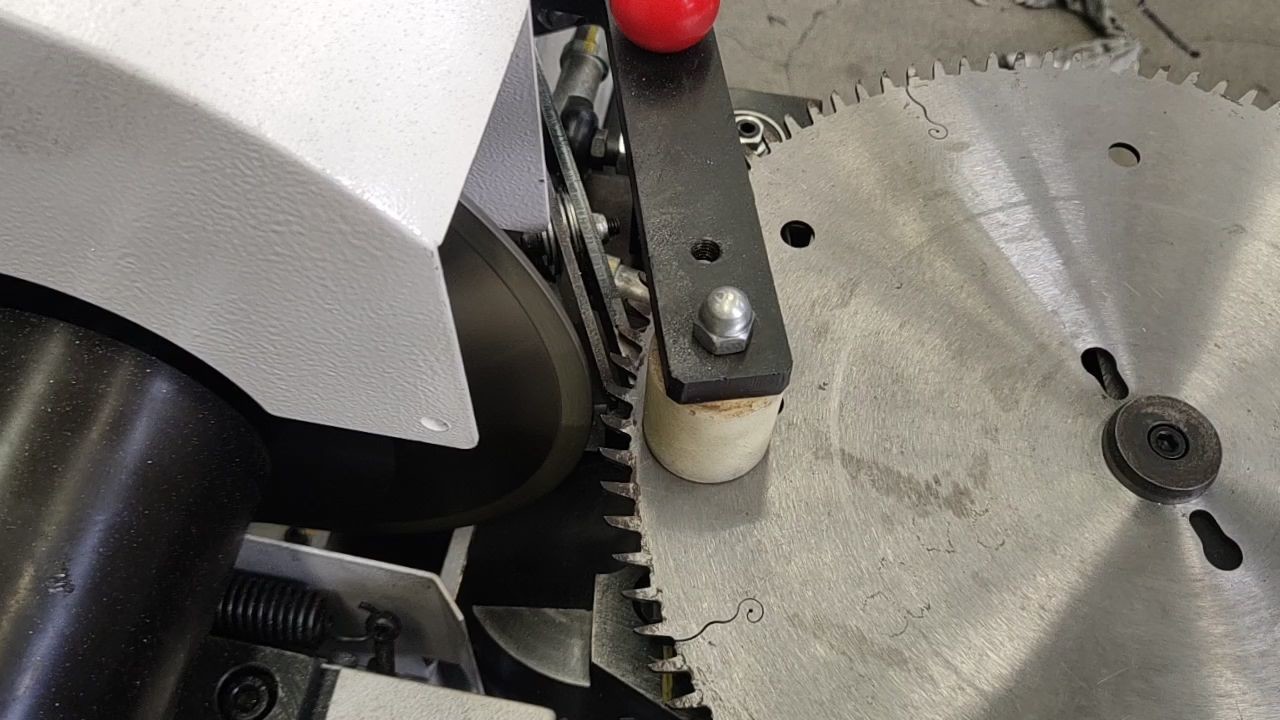

AC355/AC400 Tooth Pocket Grinding Machine for TCT TIPS seat sharpening.

• Saw blade Diameter: < 405mm
• Function: tooth pocket sharpening
• Precision: <0.03mm
• Pitch:2~70mm
• Cooperation Company
TORSEL Auto Cold Cut Circular Saw Machine Woodworking 0

TORSEL Auto Cold Cut Circular Saw Machine Woodworking 2

Advantages of sawblade grinding machine

• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding are finished in one cycle set automatically;
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;
• More Function- grinding TOOTH POCKET of sawblade

Technical Premeter

Model	AC355	AC400
Saw blade Diameter	105~355mm	105~405mm
Saw blade Thickness	1~5mm	1~5mm
Hook angle	-5°~ 30°	-5°~ 30°
Bevel angle	0°	0°
Bore diameter	12~120mm	12~120mm
Tooth pitch	2-70mm	2-70mm
Tip length	2-12mm	2-12mm
Wheel diameter	Φ255~Φ25.4X1~6mm	Φ255~Φ25.4X1~6mm
Wheel speed	3500~5500RPM	3500~5500RPM
Working efficiency	1.5~4S/Tip	1.5~4S/Tip
Machining accuracy	<0.03mm	<0.03mm
Power	1.5kw	1.5kw
Machine dimensions	1200L700W1200H;	1200L700W1200H;
Weight	520kg	570kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

TORSEL Auto Cold Cut Circular Saw Machine Woodworking 6

TORSEL Auto Cold Cut Circular Saw Machine Woodworking 6
