High Accuracy CNC Function Circular Cold Saw Equipment Woodworking

1
MOQ
8100~8600
Price
High Accuracy CNC Function Circular Cold Saw Equipment Woodworking
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: TOOTH POCKET GRINDING
MAX DIA.: 105-650MM
THICKNESS: 1-5MM
HOOK ANGLE: 30°~-10°
BEVEL ANGLE: 0°
TIPS LENGTH RANGE: 2~12MM
PITCH: 2~70MM
Grinding Wheel Speed: 1.5~4S/TIP
WHEEL GRINDING SPEED: 3500`5800RPM
WHEEL SIZE: 255*25.4*1~6MM
PRECISION: < 0.03MM
POWER: 1.2KW
DIMENSION: 950*700*900MM (L*W*H)
WEIGHT: 410KG
Highlight:

High Accuracy Circular Cold Saw Equipment

,

CNC Function Circular Cold Saw Equipment

,

Circular Cold Saw Equipment Woodworking
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: CZ-05
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

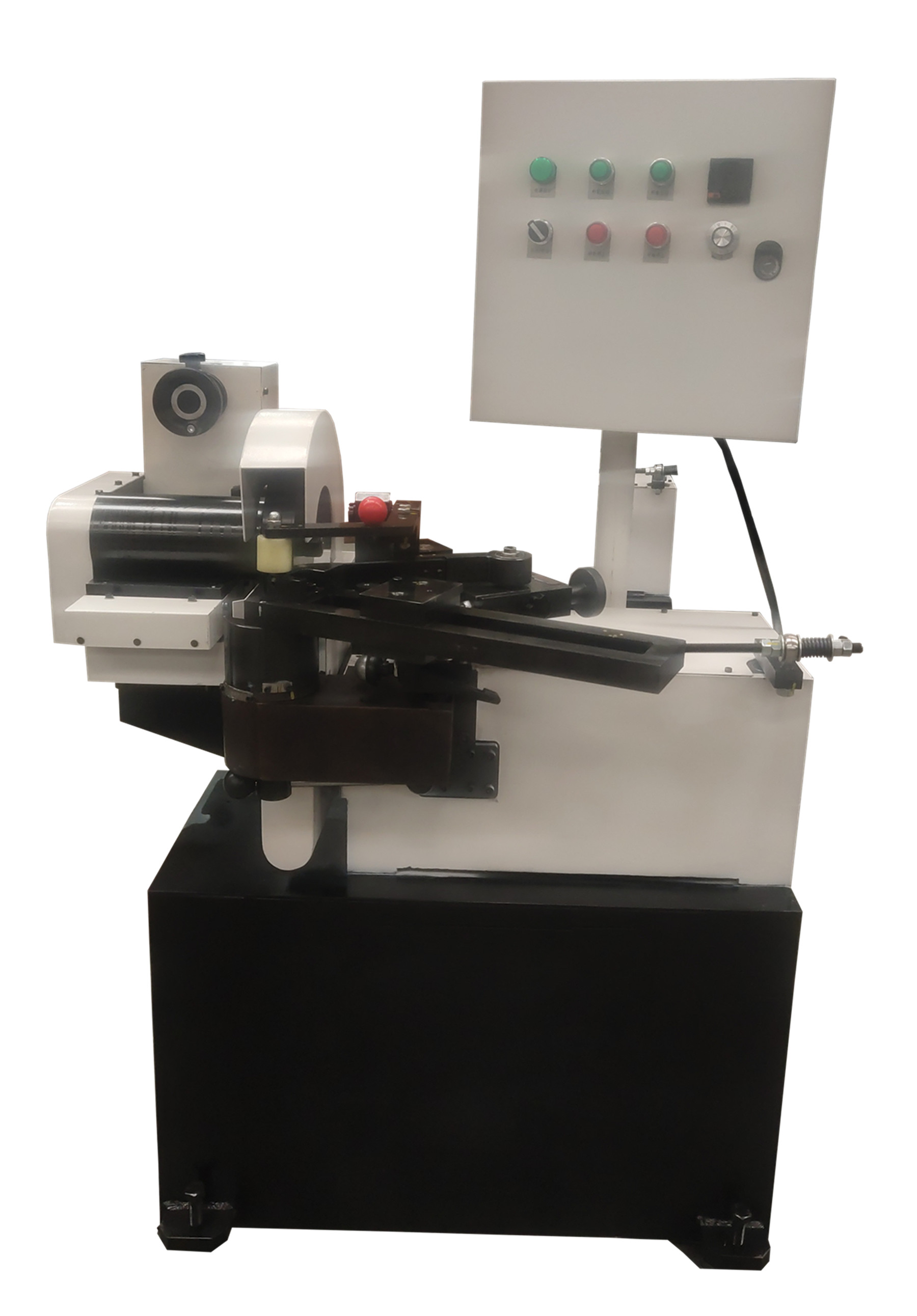

CZ-05 Tooth Pocket Grinding Machine



Product Description

CZ-05 Tooth Pocket Grinding Machine for TCT TIPS seat sharpening before cermet tips or carbide tips brazing work,with a very smooth tooth pocket surface, to make the tips brazed strongly.


• Saw blade Diameter: < 650mm
• Function: tooth pocket sharpening
• Precision: <0.03mm
• Pitch:<70mm
• Cooperation Company
High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 0

  High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 1



High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 2







Advantages of sawblade grinding machine
• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;
• More Function- grinding FACE ANGLE  of sawblade





High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 3



Technical Premeter

Model CZ05
Saw blade Diameter 105~650mm
Saw blade Thickness 1~5mm
Hook angle -10°~ 30°
Bevel angle 0°
Bore diameter 12~120mm
Tooth pitch 2-70mm
Tip length 2-12mm
Wheel diameter Φ255~Φ25.4X1~6mm
Wheel speed 3500~5500RPM
Working efficiency 1.5~4S/Tip
Machining accuracy <0.03mm
Power 1.2kw
Machine dimensions 950L*700W*900H;
Weight 410kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 4
High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 5
High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 6




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

High Accuracy CNC Function Circular Cold Saw Equipment Woodworking 7
