Home /Products/CNC Saw Blade Grinding Machine/TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking

1
MOQ
25000~38000
Price
TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: DUAL SIDE GRINDING
MAX DIA.: 120-505MM
THICKNESS: 0.5-10MM
HOOK ANGLE: -5°~30°
CENTRIPETAL: -5°~5°
CIRCUMFERENTIAL RANGE: 0°~5°
TIPS LENGTH RANGE: 2~15MM
PITCH: 2~100MM
Grinding Wheel Speed: 4~20S/TIP
WHEEL GRINDING SPEED: 3500`3800RPM
WHEEL SIZE: 80*120*32*7MM
PRECISION: < 0.02MM
POWER: 6KW
DIMENSION: 2850*1520*1920MM (L*W*H)
WEIGHT: 2500KG
FEATURES: 7*24 HOURS WORKING
FEATURES-2: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL
FEATURES-3: SAVE LABOR COST
FEATURES-4: INCREASE EFFICIENCY & PRODUCTIVITY
Highlight:

TORSEL circular saw sharpener

,

circular saw sharpener woodworking

,

High Accuracy circular saw sharpener
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: ASZ400/ASZ500
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description

ASZ400/ASZ500 CNC Circular Saw Blade Grinder with Loader



Product Description

ASZ400/ASZ500 CNC circular saw blade grinding machine with loader for TCT wood cutting saw blade & aluminum cutting saw blade Sharpening in dual side angle with Robot (PRECISION)
High-level productivity & precision grinding machine for carbide tools.

• Saw blade Diameter: < 505mm
• Function: dual Side sharpening
• Precision: <0.02mm
• Model: ASZ 400 / ASZ 500
• Pitch:<100mm
• Cooperation Company

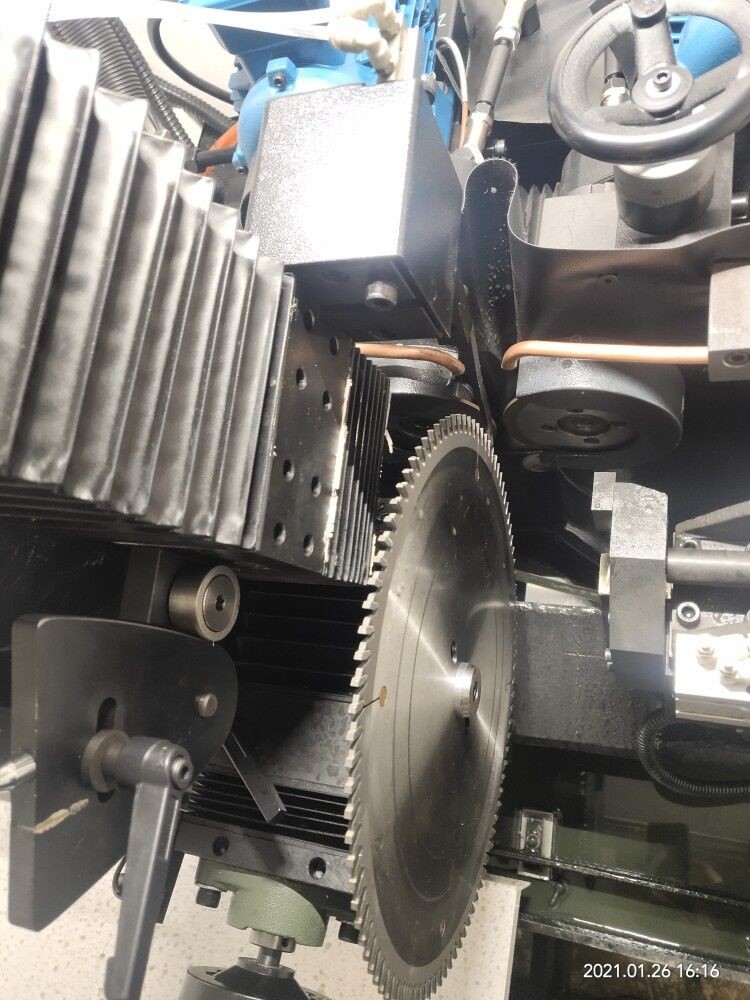

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 0

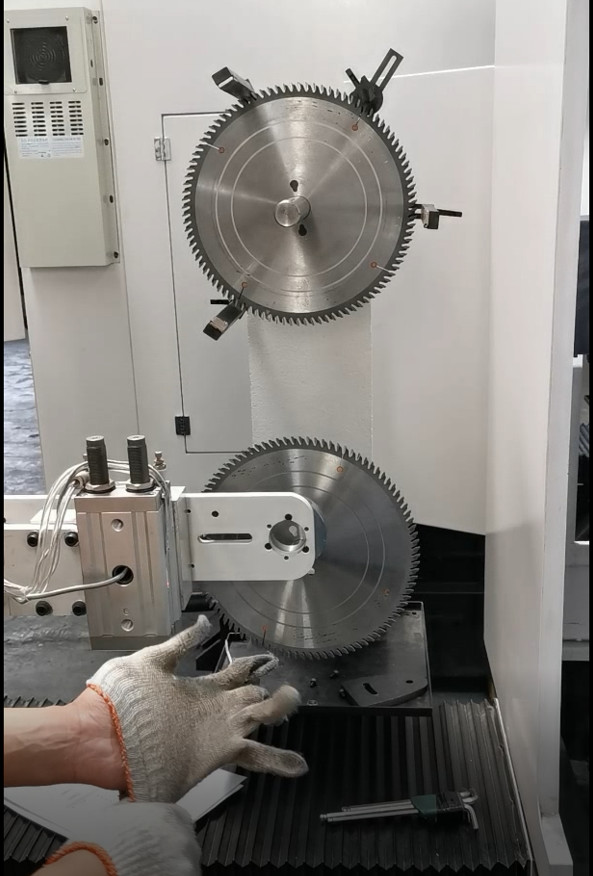

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 1

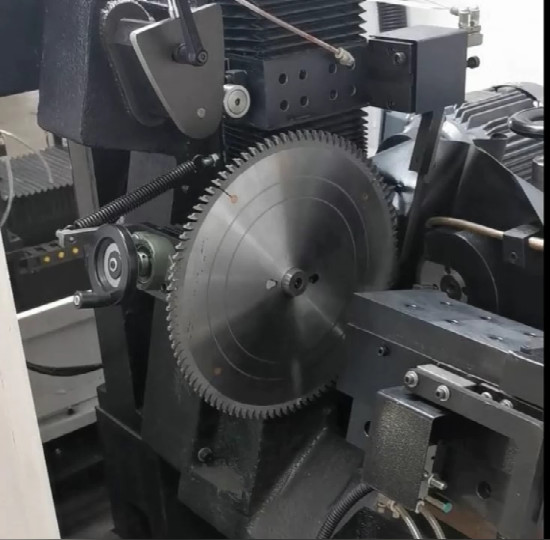

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 2

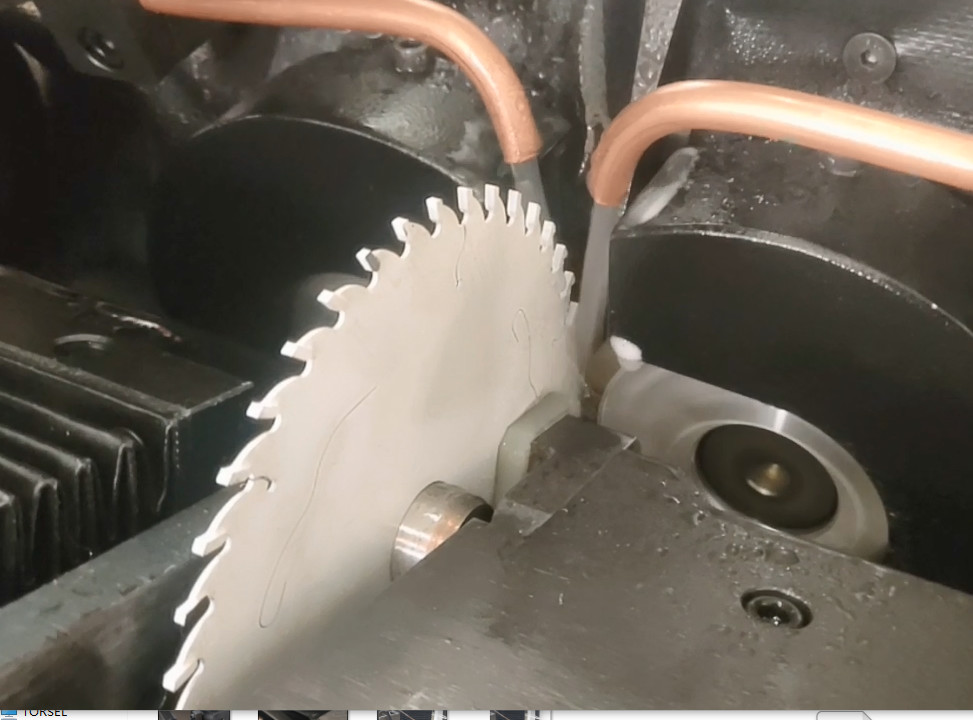

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 3





Advantages of sawblade grinding machine
• More precision- grinding precision: <0.015mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding dual side angle are finished in one cycle set automatically;
• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;
• More Function- grinding DUAL SIDE of sawblade

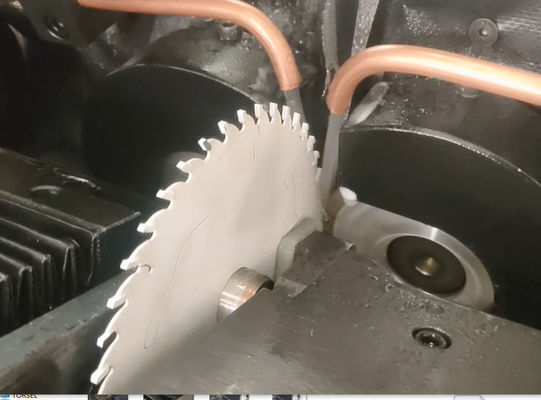

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 4




CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

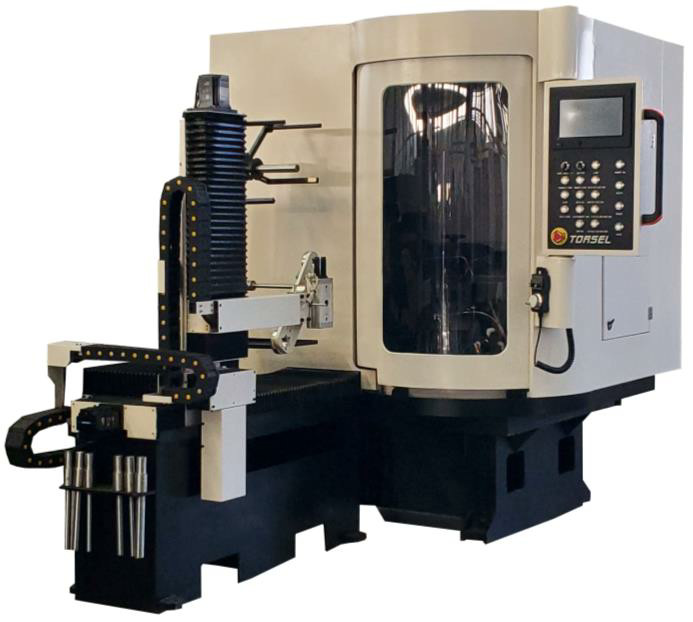

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 5 TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 6


3-D Graphics Grinding Machine

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 7





Technical Premeter



Model ASZ500 ASZ400
Saw Diameter 120~505mm 120~405mm
Plate Thickness 0.5~10mm 0.5~10mm
Centripetal -5°~5° -5°~5°
Circumferential 0°~5° 0°~5°
Bore Diameter 12~120mm 12~120mm
Pitch 2~100mm 2~100mm
Tip Length 2`15mm 2`15mm
Wheel Power 0.75KW 0.75KW
Wheel Diameter 80~120mm 80~120mm
Wheel Bore 32mm 32mm
Wheel Linear Velocity 30m/s 30m/s
Grinding Speed 2mm~10mm/s 2mm~10mm/s
Processing Efficiency 4~20 tip/min 4~20 tip/min
Grinding Accuracy <0.01mm <0.01mm
Coolant Tank 70 L 70 L
Input Voltage 380V 50Hz(OR 220V60Hz) 380V 50Hz(OR 220V60Hz)
Power Approx 6KW Approx 6KW
Dimension 2850mm*1520mm*1920mm 2650mm*1520mm*1920mm
Weight 2500kg 2500kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance



TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 8
TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 9
TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 10




FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

TORSEL CNC Saw Blade Grinding Machine / Circular Saw Sharpener Woodworking 11
