Name: Accurate Automatic Saw Blade Grinding Machine Woodworking
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: APS500
Price: 28,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: SAW BLADE SANDBLASTING MACHINE

MAX DIA.: 105~505MM

THICKNESS: 1-5MM

TIPS LENGTH RANGE: 2~20MM

PITCH: 2~65MM

PROCESSING EFFICIENCY: 15S~35S/PC

PRECISION: < 0.5MM

POWER: 4KW

DIMENSION: 2700*2660*2890MM (L*W*H)

WEIGHT: 1600KG

FUNCTION-3: LOADER PICK & PLACE SAWS INSTEAD OF MANUAL OPERATION

FUNCTION-4: SAVE LABOR COST

FUNCTION-5: 7*24 HOURS WORKING

FUNCTION-6: INCREASE PRODUCTIVITY & EFFICIENCY

SAND SPECIFICATION: 46#~80#

Highlight:

accurate automatic saw blade grinding machine

automatic saw blade grinding machine woodworking

accurate automatic saw blade sharpening machine

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: APS500

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

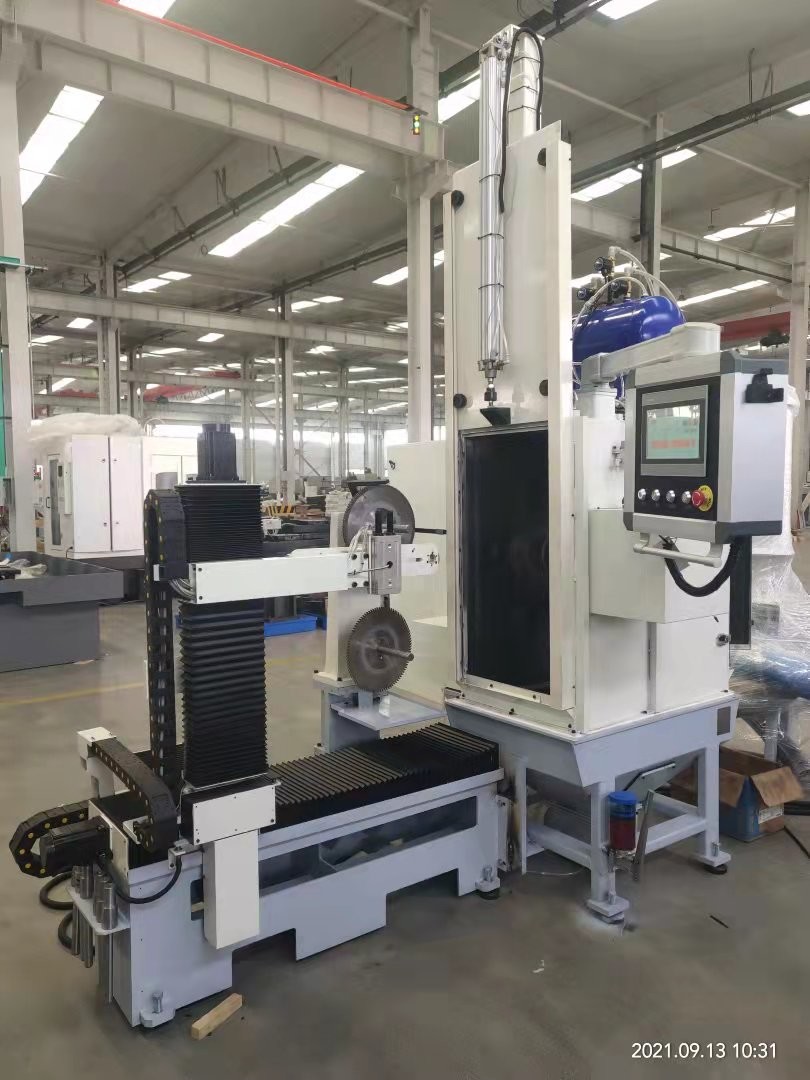

Accurate Automatic Saw Blade Grinding Machine Woodworking

Product Description

APS500 Circular Saw Blade Sandblasting Machine with Loader

Advantages of sawblade grinding machine

• Sandblasting Saws- APS500 CNC sandblasting machine is CNC servo control sandblasting machine for removing flux brazing stains from brazing tips circular saw blade, working out a very nice and smooth surface of saw blade.

• Friendly Operation Interface- Sandblasting time can be set according to requriement, sand can be recycled by sand recycle system, save processing cost;

• Save labor cost- loader can place & pick saws instead of manual operation,save labor cost sharply;

• 7*24 hours working- loader picking & placing saws,processing saws are finished in one cycle set automatically;
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;

Product Description

• Saw blade Diameter: < 505mm
• Function: sawblade sandblasting machine
• Precision: <0.5mm
• Cooperation Company

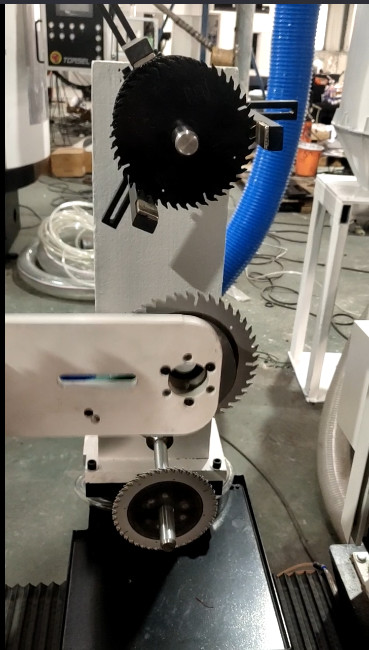

Accurate Automatic Saw Blade Grinding Machine Woodworking 0

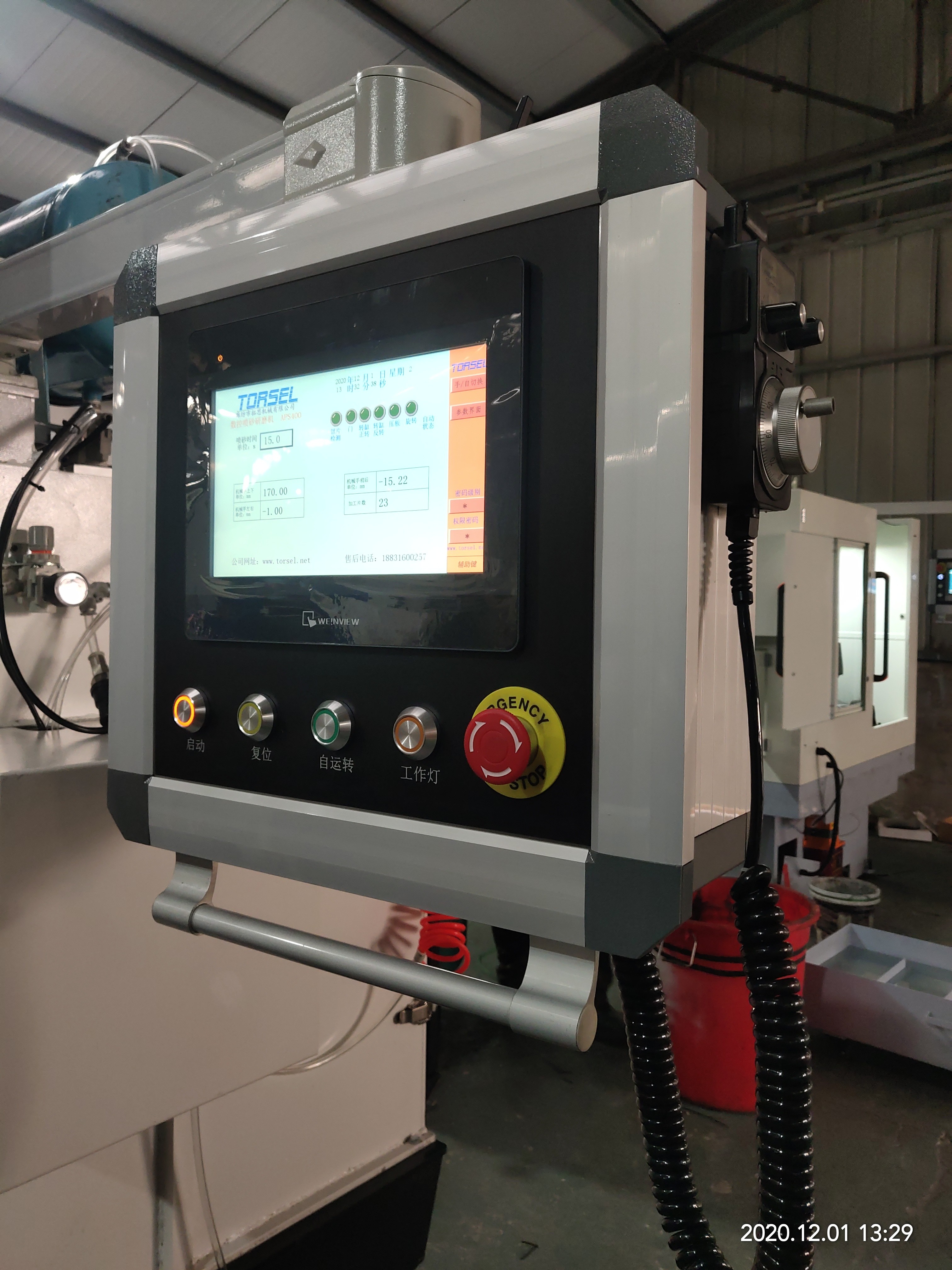

Accurate Automatic Saw Blade Grinding Machine Woodworking 1

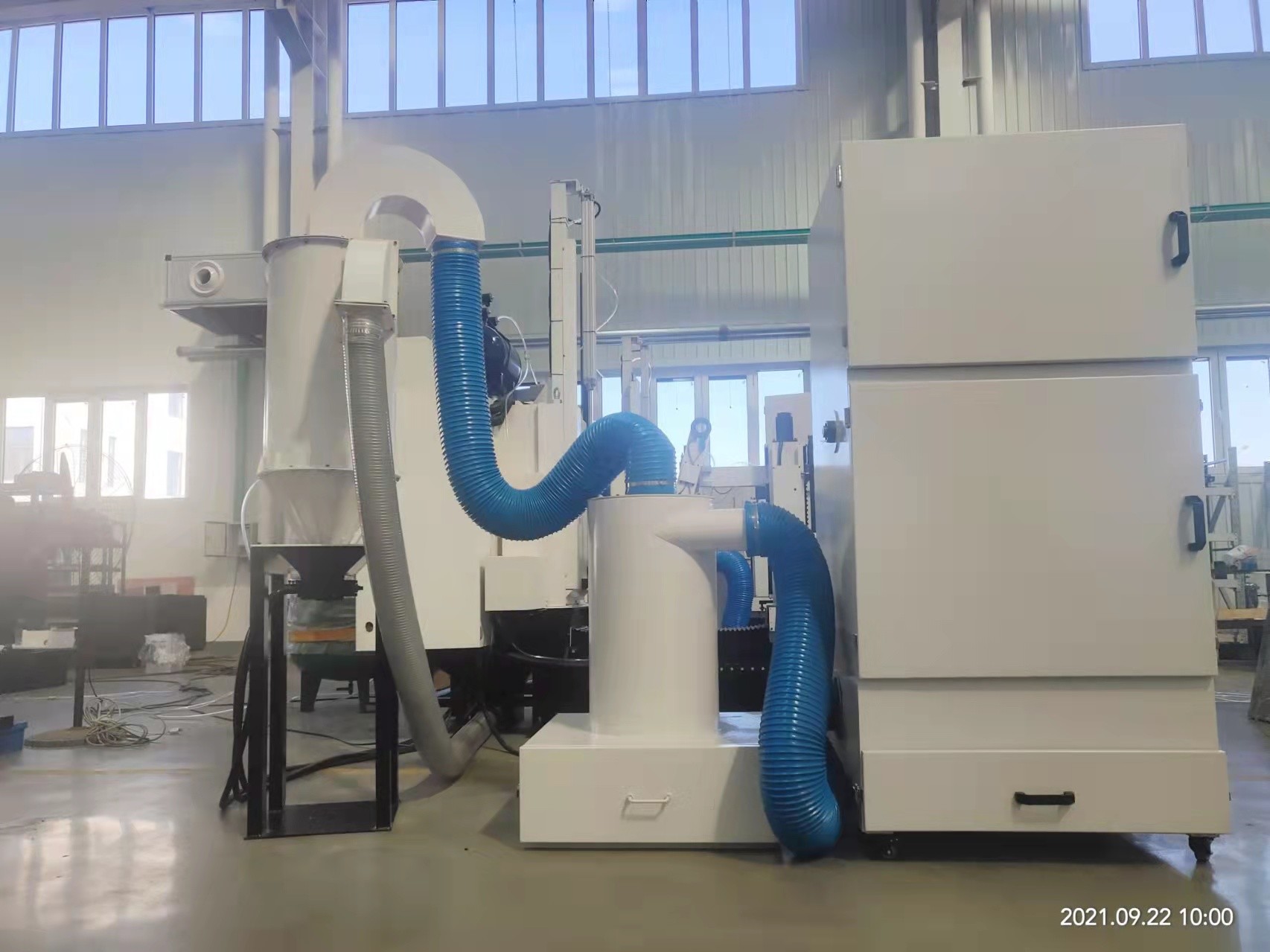

Accurate Automatic Saw Blade Grinding Machine Woodworking 2

Accurate Automatic Saw Blade Grinding Machine Woodworking 3

Sandblasting Working Principle

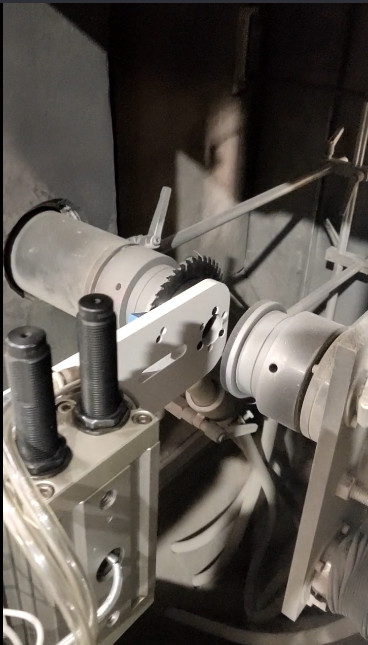

Accurate Automatic Saw Blade Grinding Machine Woodworking 4

Technical Premeter

Model	APS400	APS500
Saw blade Diameter	105~405mm	105~505mm
Saw blade Thickness	1~5mm	1~5mm
Bore range	15.88~32 (customerized is ok)	15.88~32 (customerized is ok)
Tip length	2-20mm	2-20mm
Sand Specifications	46#~80#	46#~80#
Working efficiency	15s~35s/pc	15s~35s/pc
Machining accuracy	<0.5mm	<0.5mm
Power	4kw	4kw
Machine dimensions	2700L2660W2890H;	2700L2660W2890H;
Weight	1600kg	1600kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

Accurate Automatic Saw Blade Grinding Machine Woodworking 8

Accurate Automatic Saw Blade Grinding Machine Woodworking 8
