Home /Products/Saw Blade Sharpening Equipment/High Precision Cnc Tct Circular Saw Blade Sharpening Machine

High Precision Cnc Tct Circular Saw Blade Sharpening Machine

1
MOQ
16000~25000
Price
High Precision Cnc Tct Circular Saw Blade Sharpening Machine
Features Gallery Product Description Request A Quote
Features
Specifications
FUNCTION: FACE ANGLE GRINDING
MAX DIA.: 120-650MM
THICKNESS: 0.5-10MM
HOOK ANGLE: 0°~25°
TOP ANGLE: 8°~25°
CIRCUMFERENTIAL RANGE: 0°~5°
TIPS LENGTH RANGE: 1~15MM
PITCH: 2~65MM
Grinding Wheel Speed: 3.5~20S/TIP
WHEEL GRINDING SPEED: 3500`5800RPM
WHEEL SIZE: 125*32*25MM
PRECISION: < 0.02MM
POWER: 4KW
DIMENSION: 1630*1100*1950MM (L*W*H)
WEIGHT: 1500KG
BEVEL ANGLE: -45°~45°
Highlight:

High Precision saw blade sharpening equipment

,

High Accuracy saw blade sharpening equipment

,

CNC Function saw blade sharpening equipment
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: TORSEL
Certification: CE,ISO 9001
Model Number: TFM650
Payment & Shipping Terms
Packaging Details: Water Proof + Wood Carton
Delivery Time: 25-35DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000UNITS/A
Product Description



Product Description

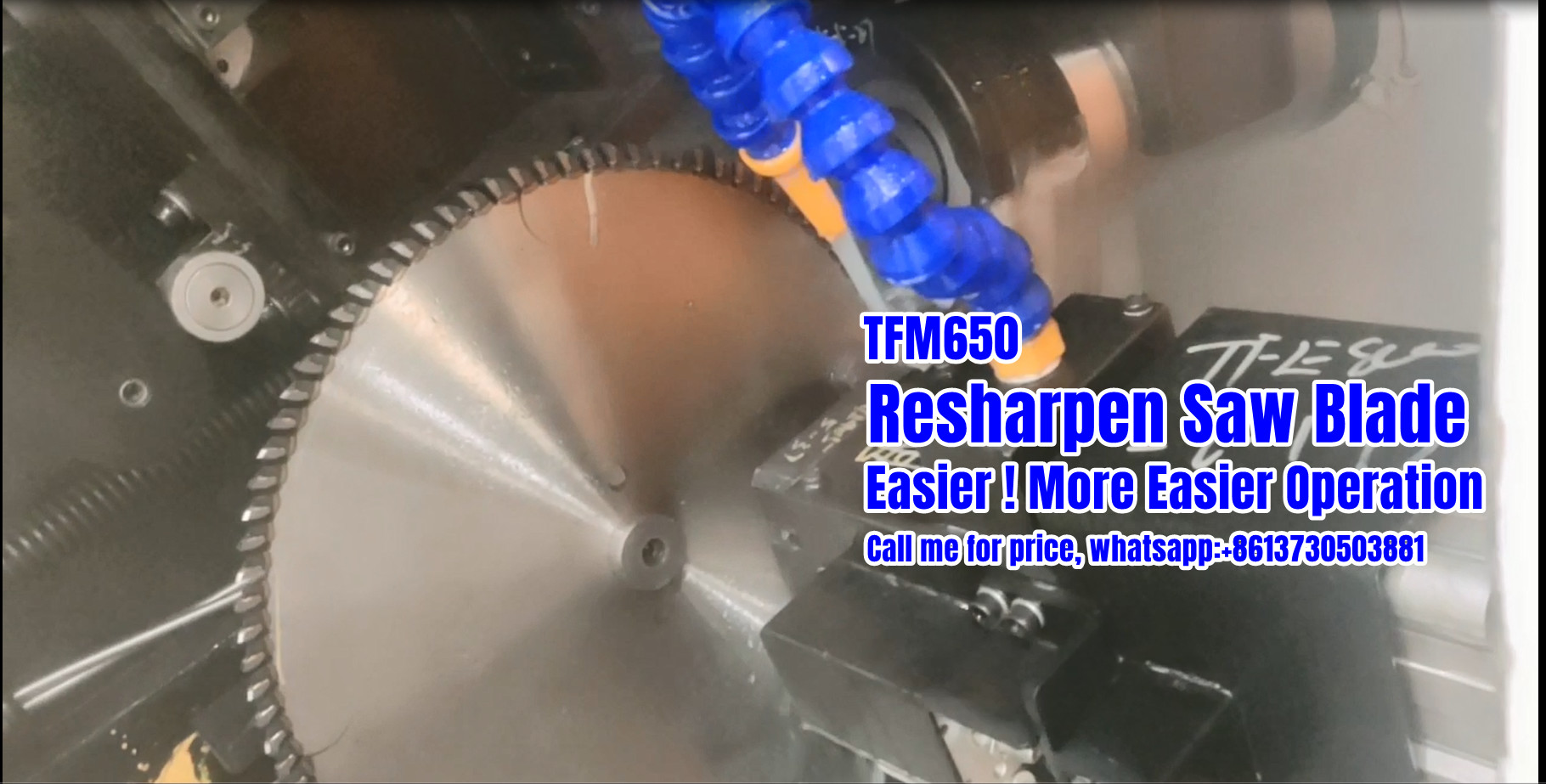

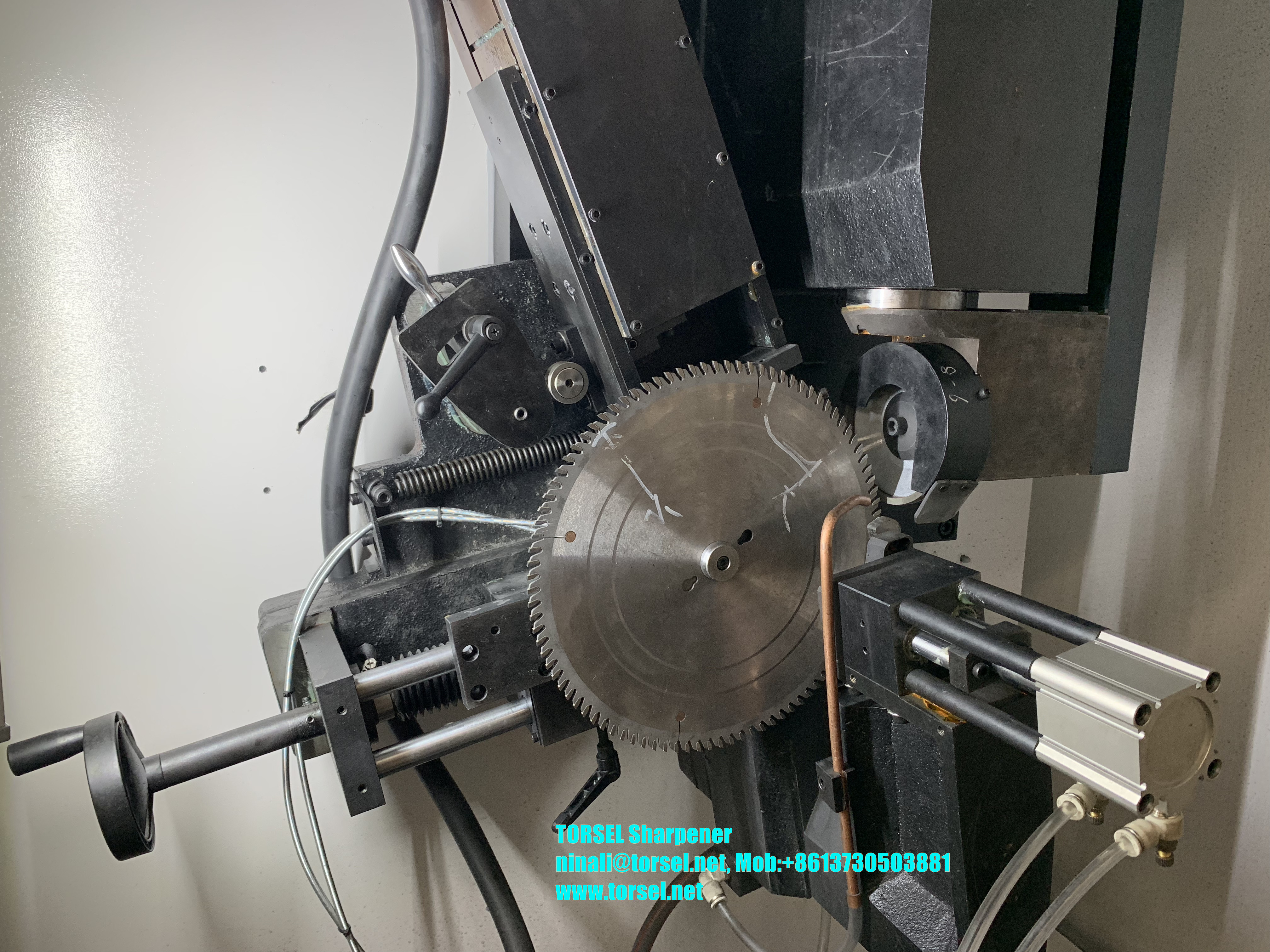

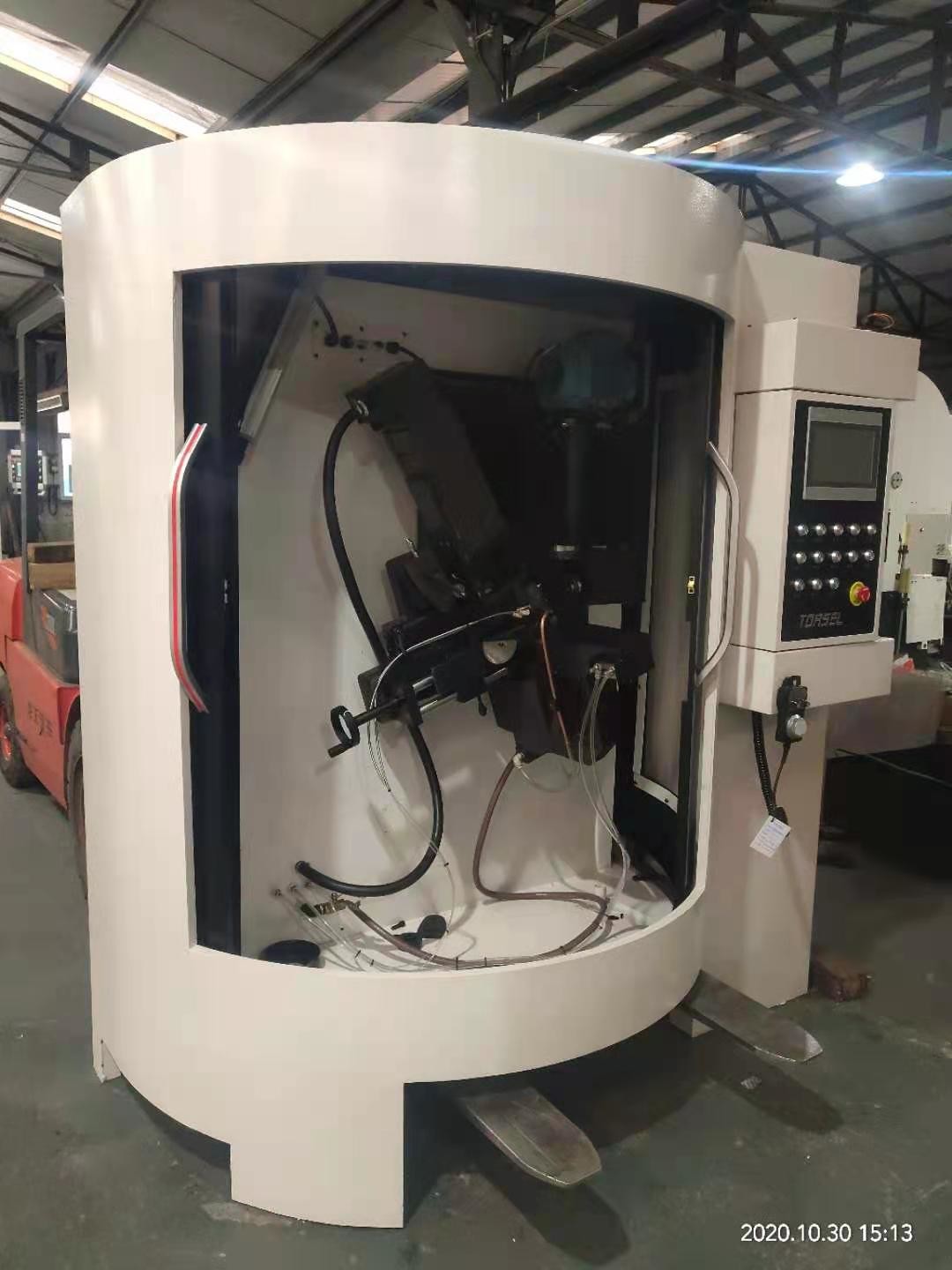

TFM 650 Circular Saw Blade Grinding Machine



Mainly specially designed for resharpening service center to resharpen carbide tips saw blades, TFM 650 Circular Saw Blade Grinding Machine is a unique solution specifically engineered for the resharpening needs of service centers. It is designed to resharpen carbide tipped saw blades, focusing on the top, face, and bevel angles, making it an indispensable tool in the woodworking and aluminum cutting industries. This model offers an economical investment for resharpening service centers, providing an optimal balance between cost and performance."





High Precision Cnc Tct Circular Saw Blade Sharpening Machine 0



Advantages of saw blade sharpener
• More precision- grinding precision: <0.02mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding TOP & FACE of saw blade



CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.


High Precision Cnc Tct Circular Saw Blade Sharpening Machine 1 High Precision Cnc Tct Circular Saw Blade Sharpening Machine 2




3-D Graphics Grinding Machine

High Precision Cnc Tct Circular Saw Blade Sharpening Machine 3






Technical Premeter
Saw Blade Diameter 110~650mm(Max700mm)
Hook Angle 0°~ -25°
Top Angle 8°~25°
Chamfer Angle of Top 45°~-45°
Chamfer Angle of Face 30°~-30°
Bore Diameter 12-120mm
Wheel Diameter 125mm*32mm
Wheel Speed 4000~5000r/min
Grinding Speed 1~20mm/s
Power 4KW
Dimensions 1630 *1100 *1950mm
Weight 1500kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance


High Precision Cnc Tct Circular Saw Blade Sharpening Machine 4
High Precision Cnc Tct Circular Saw Blade Sharpening Machine 5


High Precision Cnc Tct Circular Saw Blade Sharpening Machine 6






FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

High Precision Cnc Tct Circular Saw Blade Sharpening Machine 7
