Name: AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener
Brand: HEBEI TUOSI MECHANICAL EQUIPMENT CO., LTD.
SKU: AF650
Price: 24,500.00 USD
Availability: InStock

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener

MOQ

22000~27000

Price

Features Gallery Product Description Request A Quote

Features

Specifications

FUNCTION: FACE ANGLE GRINDING

MAX DIA.: 120-800MM

THICKNESS: 0.5-10MM

HOOK ANGLE: -5°~30°

BEVEL ANGLE: -15°~15°

CIRCUMFERENTIAL RANGE: 0°~5°

TIPS LENGTH RANGE: 1~15MM

PITCH: 2~65MM

Grinding Wheel Speed: 3.5~20S/TIP

WHEEL GRINDING SPEED: 3500`5800RPM

WHEEL SIZE: 150*32*16MM

PRECISION: < 0.03MM

POWER: 4KW

DIMENSION: 1465*1180*1850MM (L*W*H)

WEIGHT: 1300KG

Highlight:

Face Angle Circular Blade Grinding Machine

CNC TCT Circular Saw Blade Sharpener

Face Angle TCT Saw Blade Sharpener

Basic Infomation

Place of Origin: MADE IN CHINA

Brand Name: TORSEL

Certification: CE,ISO 9001

Model Number: AF650

Payment & Shipping Terms

Packaging Details: Water Proof + Wood Carton

Delivery Time: 25-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000UNITS/A

Gallery

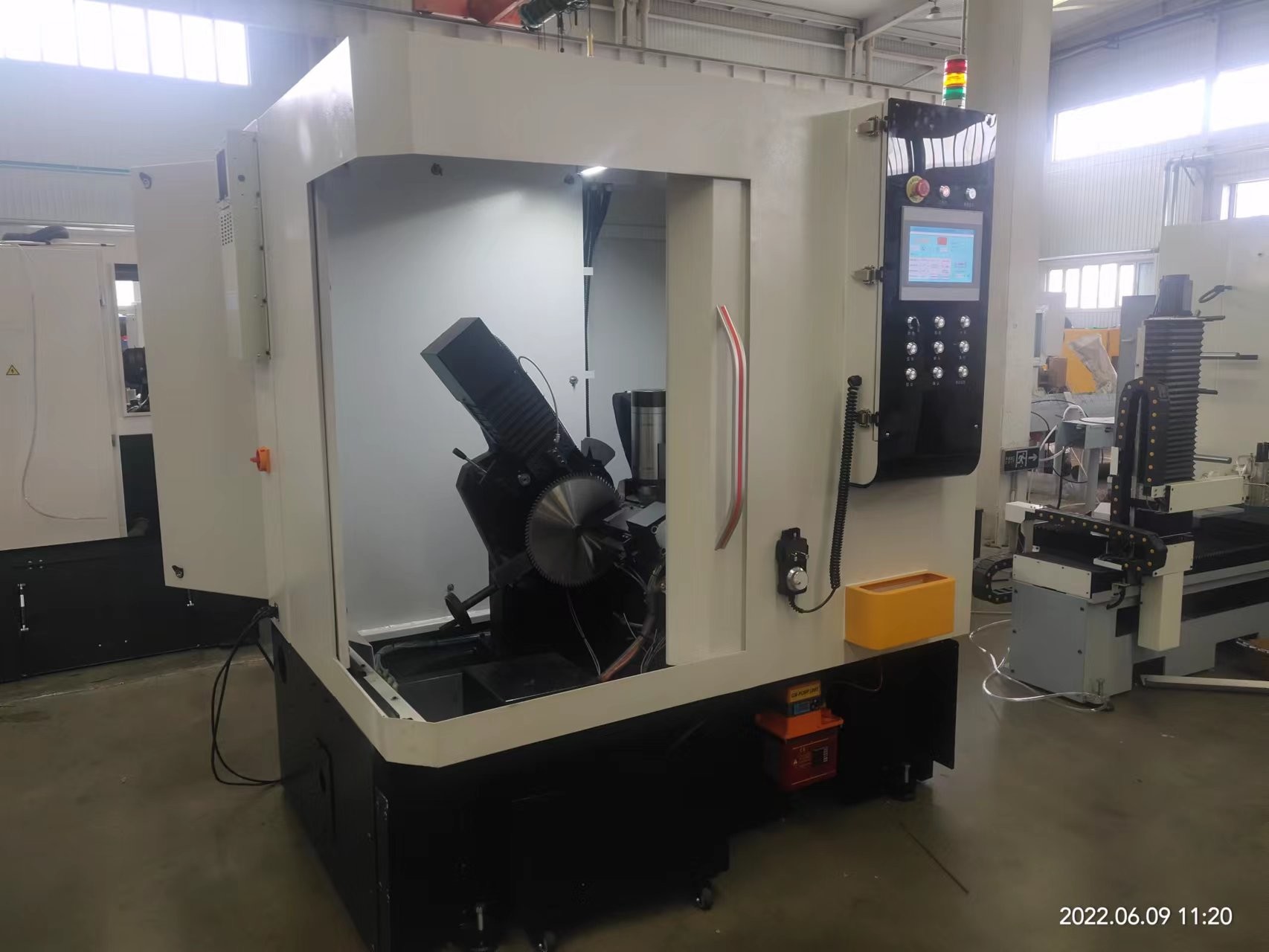

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener

Product Description

AF650 CNC Circular Saw Blade Face Sharpening Machine

Product Description

AF650 CNC FACE ANGLE Grinding Machine for TCT TIPS FACE angle sharpening, it is more suitable for saw blade grinding & resharpening. This grinder is more smart for working.

• Saw blade Diameter: < 800mm
• Function: face angle sharpening
• Precision: <0.03mm
• Model: AF650
• Pitch:<65mm
• Cooperation Company

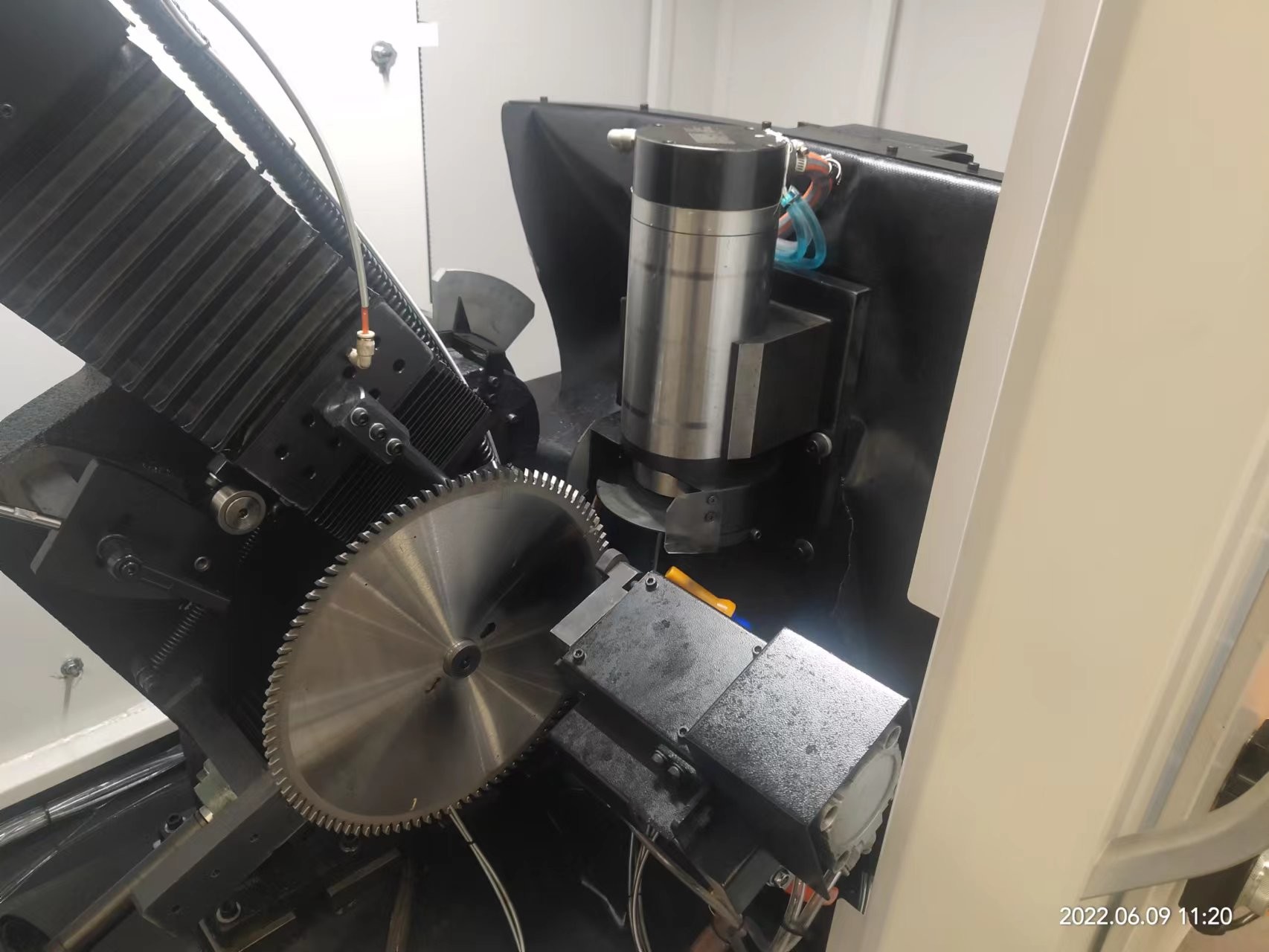

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener 0

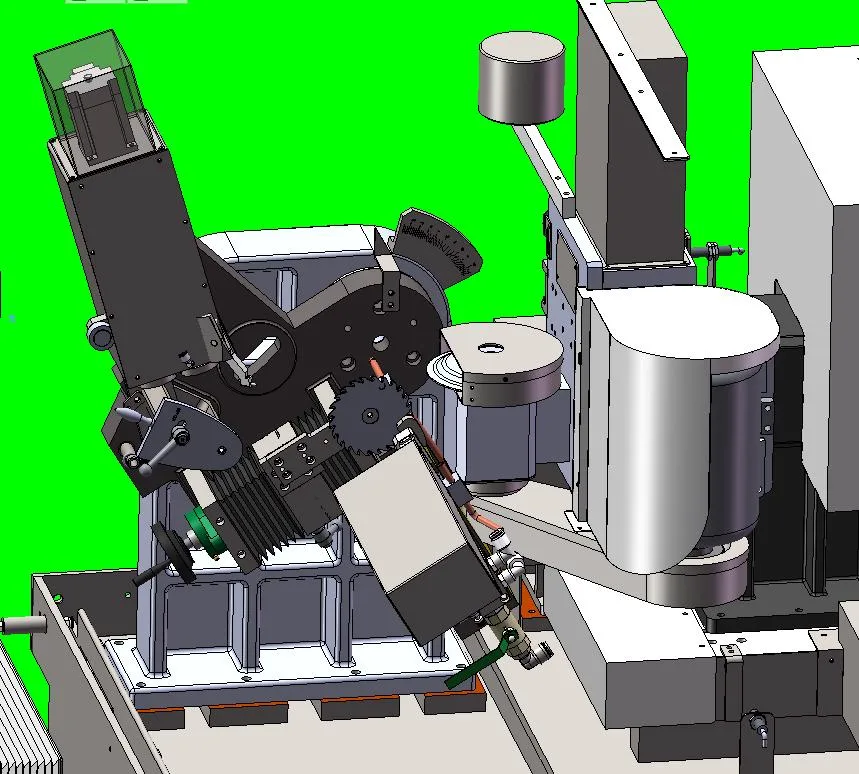

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener 2

Advantages of sawblade grinding machine
• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Higher efficiency & higher productivity- shares higher level autoamatical operation;
• More flexibility- for precision in any requirement;
• More Function- grinding FACE ANGLE of sawblade

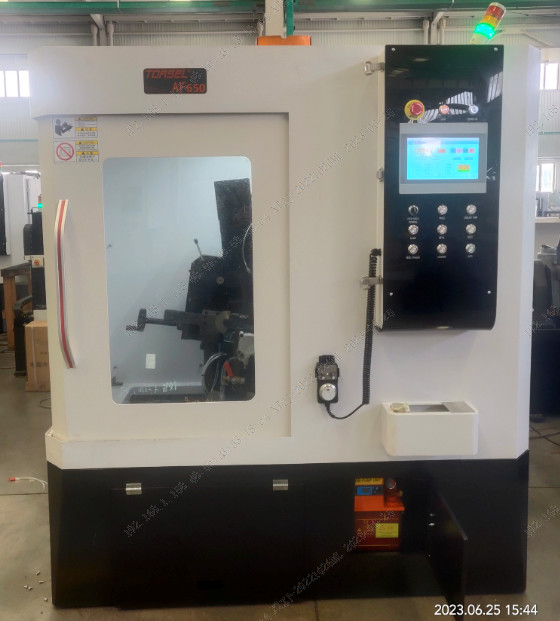

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener 4

Technical Premeter

Model	AF650
Saw Diameter	120~800mm
Plate Thickness	0.5~10mm
Hook Angle	-5°~30°
Bevel Angle	-15°~15°
Bore Diameter	12~120mm
Pitch	2~65mm
Tip Length	1`15mm
Wheel Power	0.75KW
Wheel Diameter	1503216mm
Wheel Bore	32mm
Wheel Linear Velocity	30m/s
Grinding Speed	2mm~10mm/s
Processing Efficiency	3.5~20 tip/min
Grinding Accuracy	<0.03mm
Coolant Tank	70 L
Input Voltage	380V 50Hz(OR 220V60Hz)
Power	Approx 4KW
Dimension	1465mm1180mm1850mm
Weight	1300kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener 8

AF650 CNC Face Angle Circular Blade Grinding Machine TCT Saw Blade Sharpener 8
